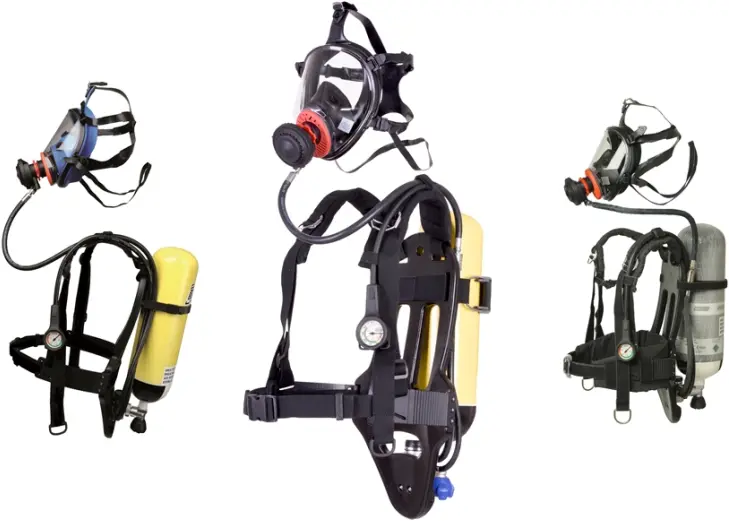

SCBA Kit - RN FR SCBA + Full Face Mask TR2002 CL3 + Demand valve type A + Steel Cylinder

RN FR

Self Contained Breathing Apparatus - Type 2

RN FR is a type 2 Self Contained Breathing Apparatus specifically designed for fire fighting.

RN FR adds the highest degree of safety and comfort to the efficiency, versatility and simple use. Materials and technologies employed in FR models are of the highest standard and they are all used to make the breathing apparatus components very high resistant to flames and able to resist to Flash Over test as per EN 137:2006 standard.

RN FR  is fitted with an automatic demand valve which keeps a positive pressure in the mask thus avoiding any possible inward leakage of contaminated air from the outside. Should it become necessary, the positive pressure mode can be activated by acting on the special button that acts as a supplementary air command, too. The demand valve is connected to the medium pressure hose by means of a quick coupling which allows it to be disconnected very easily for maintenance. The medium pressure hoses of the reducer and of the demand valve are covered by  a special Kevlar sleeve to protect them from flames.

RN FR takes advantage from the unique RN System warning built into the demand valve. This is activated when the pressure left in the cylinder drops below 55 bar. The signal originates from a sounding vibration caused by every inhalation. In this way the full capacity of cylinder is made available to the user for breathing. The acoustic warning is related to the respiratory frequency of the user and allows the user to distinguish his own signal from those emitted by nearby

fellows or noise (Self Test Function). The location of the warning device protects it from frost or dirt.

The back plate is made of vacuum formed polypropylene, it is extremely robust and anatomically shaped to allow a comfortable distribution of weight and remains steady on the wearer’s back even when crouching or crawling. The supporting harness is provided with a special padding to increase comfort and  with a soft belt in the hips area which increases portability of the equipment. All harnesses and padding are in aramidic and para-aramidic material and self-extinguishing foams. Special handles integral with the backplate are provided for carrying the set along. The pressure reducer keeps the outlet pressure constant throughout the emptying of the cylinder and is connected to an easy to read phosphorescent gauge. The cylinder has a pressure of 300 bar and is fitted with a valve according to EN 144.

RN FR

Self Contained Breathing Apparatus - Type 2

FULLFACE MASK: RN FR can be equipped with three different type of masks in EPDM: TR2002 CL3+

DEMAND VALVE RN FR can be supplied with demand valve type A.

Activate automatically with a button to stop airflow.

P/N DV RN A  M45x3 threaded connecton 1588500CJ

CYLINDER: P/N 6L 300 Bar Steel - 924630000

EXTRA WHISTLE KIT

The accessory  “additional alarm “ (Cod. 151530000)  available on request gives the possibility to add a continuous whistle to the alarm signal provided already in the demand valve.

RN CONNECTION

The medium pressure hose, which connects the reducer to the demand valve, can be equipped with quick Euro- Coupling couplings or Spasciani couplings.

TECHNICAL DATA

Pressure Reducer: piston with compensator

Automatic Demand Valve: with integral alarm device and supplementary supply button

Setting of the Alarm: 55 ± 5 bar

Cylinder Capacity: 300 bar

CLASSIFICATION

Certified Type 2 to ISO 23269-2:2011 and EN 137:2006 and meeting with the provisions of Regulation (EU) 2016/425, 2014/68/UE (PED) and 2014/90/UE (MED) e ATEX*.

MARKING

MATERIALS

Backplate: Thermoplastic polypropylene

Harness with padding: Self-extinguishing webbing and elastomeric foam

Pressure reducer: Brass alloy chrome plated

STORAGE

Store at temperatures between -20 and +50 °C and with RH <80%

WEIGHT

15 Kg approx., set complete with mask and fully charged steel cylinder 10Kg approx., set complete with mask and fully charged composite cylinder

DIMENSIONS/PACKAGING
