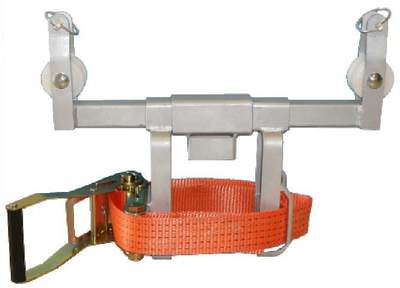

POT150 Lifting bracket tΚαπέλο can be positioned on top of poles
USE :
Lifting bracket that can be positioned on top of poles.
Can be fixed to the top of wooden or concrete poles up to 280mm width.
Used for the following operations :
- Lifting of LV aerial bundle line/cable for clamping.
- Applying a lifting force from the top of the post.
- Applying a lifting force on a crossbar.
- Lifting equipment to a technician positioned at height
SPECIFICATIONS :
Zinc plated welded steel frame.
Clamping on the support by means of a ratchet strap.
Centering on the head of the support can be adjusted and therefore transfer of the forces in the axis of the post.
Transfer of the mechanical force by 2 Teflon guide pulleys.
Delivered without any rope and hook
Pole width max: 380mm
WLL (kg): 150
ADVANTAGES :
• Relieves forces during aerial work.
• Allows lifting forces to be applied from the ground.
• Allows the technician to work in a better position.
• Saves time and therefore reduces operation and shutdown time.
