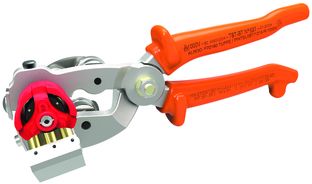

PINTEL4BT/1216R-1000V 1000V μονωμένη πένσα LV με κεφαλή 3 θέσεων για καλώδιο σύνδεσης CC 1.2 LC 1.2, 1.6, 1.8

STANDARD(S) : IEC 60900 / EN 60900 Compatible with EDF-HM-27/03/139, NF C 33-210, NF C 33-209, NF C 33-221 (U1000), NF C 33-400.

USE : PINTEL4BT/1216-R-1000V pliers are insulated 1000V and specially made to remove the cable outer sheath by selecting different longitudinal cutting depths during live working.

SPECIFICATIONS :
PINTEL4BT/1216-R-1000V for cables from Ø10 to 30 mm.
Penetration in circular cut : 1,2 mm.
Penetration in longitudinal cut : 1,2 – 1,6 – 1,8 mm.
25 to 35 mm² for cables EDF HM-27/03/139
16 to 50 mm² for cables NF C 33-210
25 to 150 mm² for cables NF C 33-209
25 to 35 mm² for cables NF C 32-321 (U1000)

ADVANTAGES :
Oscillating cable support for a better guidance.
Stripping of the sectoral phases of cables network.
