Σετ καλωδίων PICOUPEXP350ECE MV Hydraulic Spiking-Cutting

USE : Spiking a cable to check and ensure the absence of tension on LV and MV underground cables before cutting them.
LV to HN 33 S 32 and S 33 Districables up to and including 3x400 mm² alu + 1x95 mm² alu.
MV to NFC 33320 and C33223 : 3x240 mm² and 1x630 mm² ( single phase ).
Old cables according to NFC 33.100 and cables with armoured steel wire.
Cables with armoured steel wire.
Cutting, after this picking operation the so disconnected cable may then be safely cut.

SPECIFICATIONS :
• Hydraulic spiking and cutting tool :
- A dual-stage hydraulic jack
- An handle that helps to position and hold the tool on the cable
- A heat treated steel cutting blade
- A cradle to centre the tool on the cable
- An integrated hydraulic pump 750 bars
- Cutting capacity : cable diameter up to 120 mm
- Maximum section : copper 3 x 400 mm²
- Dimensions : 780 x 210 x 330 mm
- Weight : 14 kg

• Remote control panel with radio code (frequency 433,92 Mhz) :
- The remote control panel connected to the spiking and cutting tool - electrical wire of 3 metres long
- 1 Flash indicates the stand-by of the case remote control
- 1 Siren indicates the good accomplishment of the operation and the end of it
- The tool is working thanks to the battery connected on its case

• Wireless remote control (433,92 Mhz) :
- Powered by two 1.5 V battery
- Radio coded
- Single encoding
- Used up to 150 metres

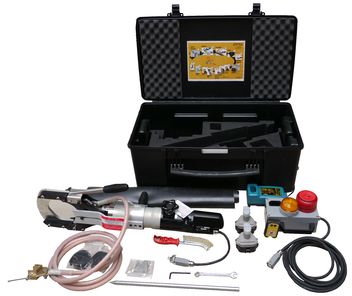

Delivered in case containing all necessary parts for the checking absence of voltage operation:
- Flexible braid and earthing rod
- 2 batteries 12 Volts 2,6 Ah. Nimh and one 1 hour fast charger
- Wrench to install an other steel pike and to disconnect the earthing flexible braid
- 1 gauge to check the pike
- 1 spare pike
- 2 straps each 2m. long for securing in tunnels and trenches
- Protective undercarpet 0.7 m x 1m.

ADVANTAGES :
Cut armoured cables up to Ø 100 mm.
Plastic trolley case with 3 carrying handles
