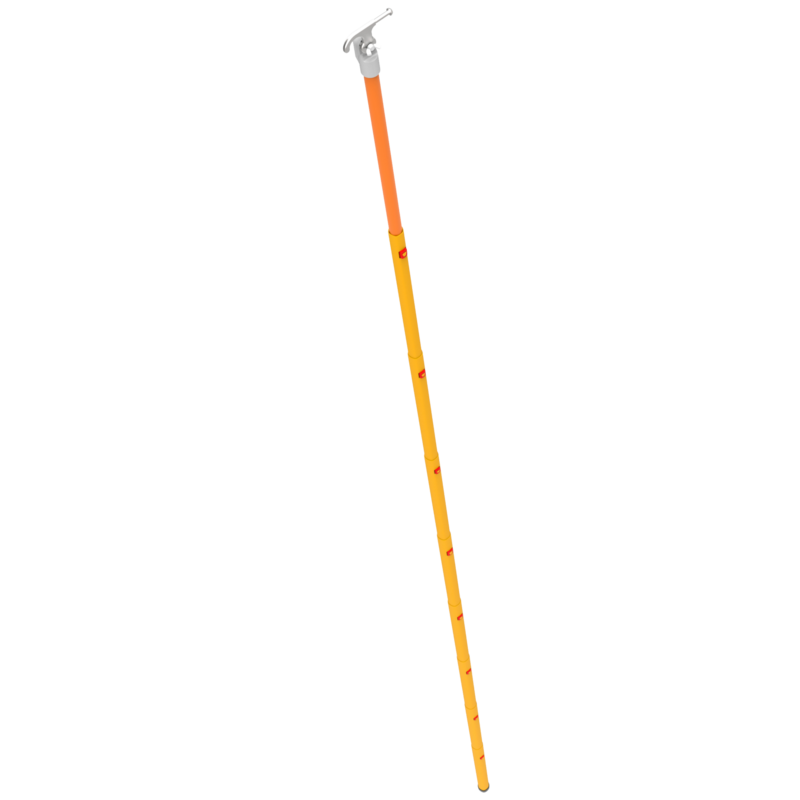

Τηλεσκοπικό μονωτικό στάνταρ PENTA-POLE

Standards
IEC 62193, IEC 60855-1 ASTM F 1826, ASTM F711

Use
Telescopic insulating stick with pentagonal shape perfectly suits for :
• operation of disconnect switches,
• use with voltage detectors,
• application of LV/MV earthing devices,
• maintenance work (tree trimming, conductor cleaning ...)

Technical specifications
Telescopic insulating stick composed of :
• 2 to 8 pentagonal shaped tubes compliant with standards IEC 62193 and ASTM F1826
• 1 foam-cored upper tube, 28 mm in diameter, compliant with standards IEC 608551 and ASTM F711
• 1 base to protect the end of the stick
• 1 universal end fitting to fix multiple accessories and adapters
• 1 operating hook

Advantages
• Ergonomically designed grip thanks to its pentagonal shape that fits the palm of the hand
• The pentagonal shape prevents the tubes rotating on each other
• Very lightweight stick : requires less effort during use
• Very good rigidity providing optimal control during your operations
• The sections are locked together automatically when the stick is extended by a large and very robust red button. Unlocking to retract the stick simply involves pressing the button, with no risk of trapping finger or gloves in the mechanism

PPOL3/035 / Number of element 3 / Folded length (m) 1,45 / Insulating telescopic pole 3 elements / Weight 1,80 / Extended length (m) 3,70 / Cover HPPOLE/150 / Max voltage of use - all weather 132 kV / Max operating voltage cond. dry 170 kV
PPOL4/050 / Number of element 4 / Folded length (m) 1,51 / Insulating telescopic pole 4 elements / Weight 2,40 / Extended length (m) 5 / Cover HPPOLE/170 / Max voltage of use - all weather - / Max operating voltage cond. dry 245 kV
PPOL5/060 / Number of element 5 / Folded length (m) 1,58 / Insulating telescopic pole 5 elements / Weight 3,15 / Extended length (m) 6,30 / Cover HPPOLE/170 / Max voltage of use - all weather - / Max operating voltage cond. dry 420 kV
PPOL6/075 / Number of element 6 / Folded length (m) 1,65 / Insulating telescopic pole 6 elements / Weight 3,85 / Extended length (m) 7,70 / Cover HPPOLE/170 / Max voltage of use - all weather - / Max operating voltage cond. dry 525 kV
PPOL7/090 / Number of element 7 / Folded length (m) 1,71 / Telescopic insulating pole 7 elements / Weight 4,60 / Extended length (m) 9,10 / Cover HPPOLE/190 / Max voltage of use - all weather - / Max operating voltage cond. dry 765 kV
PPOL8/105 / Number of element 8 / Folded length (m) 1,78 / Insulating telescopic pole 8 elements / Weight 5,45 / Extended length (m) 10,60 / Cover HPPOLE/190 / Max voltage of use - all weather - / Max operating voltage cond. dry 900 kV
PPOL9/120 / Number of element 9 / Folded length (m) 1,78 / Insulating telescopic pole 9 elements / Weight 6,35 / Extended length (m) 12 / Cover HPPOLE/190 / Max voltage of use - all weather - / Max operating voltage cond. dry 900 kV
