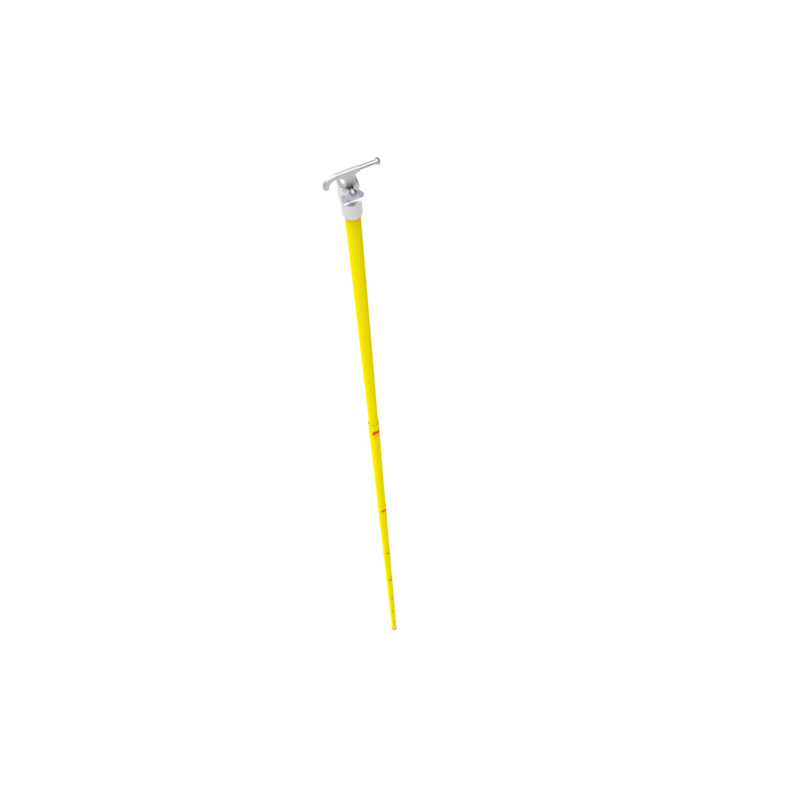

PENTA-POLE R Ενισχυμένο μονωτικό τηλεσκοπικό ραβδί

Standards
IEC 60855-1 / IEC 6213 ASTM F 1826 / ASTM F711

Use
The insulating telescopic stick achieves great heights up to 35'3'' (10,7 m) while maintaining a compact folded maximum length 5'9'' (1,76 m).
The stick is constituted of 3 to 8 elements, which can be adapted to all configurations of use.
They can be used in a wide temperature range (-25 à 55°C), indoors oroutdoors.
These insulating sticks give multipleapplication as:
• Installation and removal : lifeline, hook measuring, cleaning drivers
• Proving dead with voltage detector
• Pruning
• Conductive cable lifting (special transport)
• Grounding of distribution networks from the ground by vertical lifting
This reinforced version provides even greater rigidity, allowing more precise movement and supporting heavy manoeuvring loads.

Technical specifications
• Composition:
- 4 to 7 Fiber Reinforced Plastic (FRP) yellow tubes complying withIEC 61235/S standard1
- Ø 32 mm, terminal element (¼'') Fiber Reinforced Plastic (FRP)on polyurethane stiff foam complying with IEC 60855-1 standard, Color Fluorescent yellow for better visibility
• End fitting: Universal (U), Hexagonal (APV) ou Bayonet (B)

Advantages
• Round terminal tube IEC 60855-1 / ASTM F711
The terminal tube is a round tube built on a rigid, waterproof polyurethane foam.
• Weight / Stiffness
Each stick's tubes were made in order to optimized its modulus of elasticity and also their weight.
• Shape
By its unique shape, curved pentagonal brings a feeling of exceptional taking in hand while remaining close to a cylindrical shape commonly used for poles.
Moreover, this form is used to transmit important torque efforts torsion during operation requiring an action of tightening or loosening.
• Lock button
The locking elements is provided automatically when deploying the pole by a wide sturdy bi-material button. Unlocking and folding is achieved by a simple action on the button.

PPOLR2/025 / Length folded (m) 1,4 / Length deployed (m) 2,6 / Cover HPPOLE/150 / Number of elements 2 / Extended length (m) - 11187 - / Max operating voltage cond. dry 132 kV / Folded length (m) - 11189 -
PPOLR3/040 / Length folded (m) 1,44 / Length deployed (m) 3,84 / Cover HPPOLE/150 / Number of elements 3 / Extended length (m) - 11188 - / Max operating voltage cond. dry 170 kV / Folded length (m) - 11190 -
PPOLR4/050 / Length folded (m) 1,56 / Length deployed (m) 5,15 / Cover HPPOLE/170 / Number of elements 4 / Extended length (m) - 11189 - / Max operating voltage cond. dry 245 kV / Folded length (m) - 11191 -
PPOLR5/065 / Length folded (m) - / Length deployed (m) - / Cover HPPOLE/170 / Number of elements 5 / Extended length (m) - 11190 6,52 / Max operating voltage cond. dry 420 kV / Folded length (m) - 11192 1,63
PPOLR6/080 / Length folded (m) - / Length deployed (m) - / Cover HPPOLE/170 / Number of elements 6 / Extended length (m) - 11191 7,9 / Max operating voltage cond. dry 525 kV / Folded length (m) - 11193 1,69
PPOLR7/095 / Length folded (m) - / Length deployed (m) - / Cover HPPOLE/190 / Number of elements 7 / Extended length (m) - 11192 9,3 / Max operating voltage cond. dry 765 kV / Folded length (m) - 11194 1,76
PPOLR8/110 / Length folded (m) - / Length deployed (m) - / Cover HPPOLE/190 / Number of elements 8 / Extended length (m) - 11193 10,8 / Max operating voltage cond. dry 900 kV / Folded length (m) - 11195 1,76
