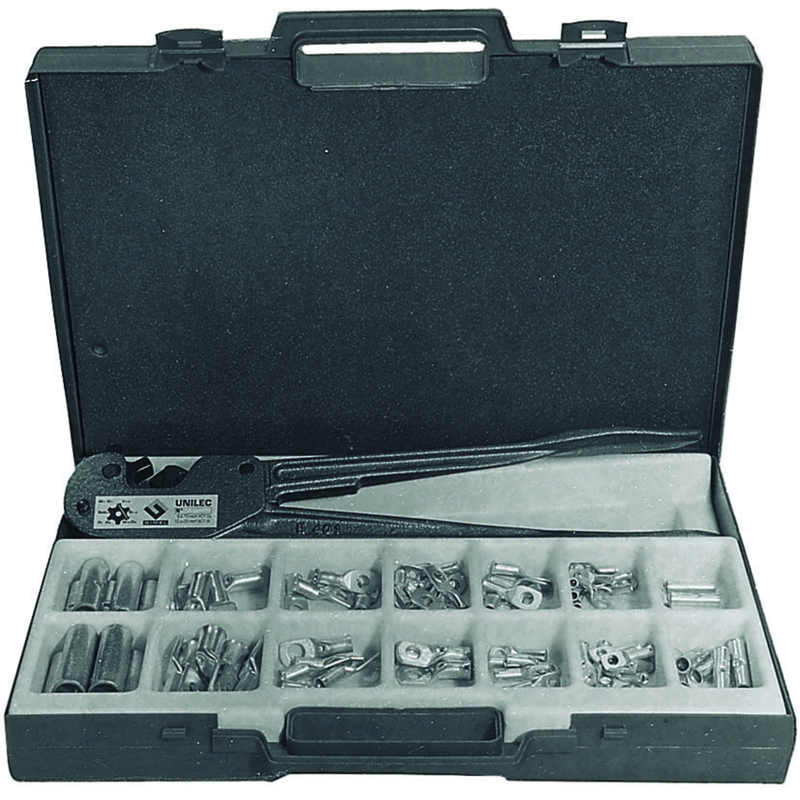

P125CO Πένσα εσοχής πτύχωσης P125 σε θήκη με 85 ακροδέκτες και ωτίδες

USE :
Manual indent crimping tool with cylinder for Cu connectors according to NFC20-130.
- XCT,XG7T,CT,CU,MJ : up to 70 mm².

SPECIFICATIONS :
Contents :
• 1 plastic case with dividers
• 1 indent crimping pliers (ref. P125),
• 5 LV copper sleeves XG7T series 15 mm²,
• 5 LV copper sleeves XG7T series 25 mm²,
• 5 LV copper sleeves XG7T series 50 mm²,
• 5 LV copper sleeves XG7T series 70 mm²,
• 10 copper tubular lugs XCT series 10-8,
• 10 copper tubular lugs XCT series 10-6,
• 10 copper tubular lugs XCT series 6-6,
• 5 copper tubular lugs XCT series 16-6,
• 5 copper tubular lugs XCT series 16-8,
• 5 copper tubular lugs XCT series 25-8,
• 5 copper tubular lugs XCT series 25-10,
• 5 copper tubular lugs XCT series 35-8,
• 5 copper tubular lugs XCT series 50-10,
• 5 copper tubular lugs XCT series 70-10.

ADVANTAGES :
• Tool equipped with a cylinder with 7 cavities: 6, 10, 16, 25, 35, 50, 70mm².
• Box containing a selection of 85 Cu connectors (lugs + sleeves).
