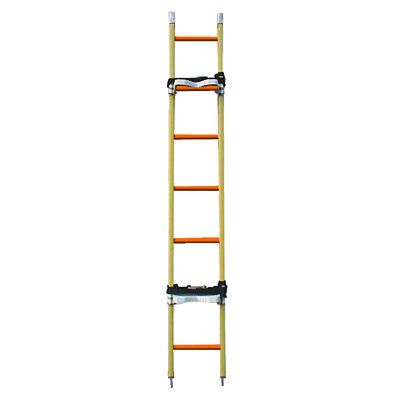

MV Σκάλα KIT Middle Voltage Spliced Σκάλα kit

USE :
For Middle Voltage Live Working.
For climbing on poles, regardless of their height. Positions line workers safely

SPECIFICATIONS :
Kit made up of:
- Aluminium base with adjustable feet for adapting to ground irregularities (Ref. EB)
- Aluminium intermediate elements (Ref. EM)
- Insulating intermediate elements to keep the line worker safe in the work area (Ref. ESE)

EB210 = Metal Base element 2.10 m with adjustable feet + 2 cradles with straps , Weight (kg): 7 , Number of rungs: 7
EB300 = Metal base element 3.00 m with adjustable feet + 2 cradles with straps , Weight (kg): 9 , Number of rungs: 10
EM210 = Metal intermediate element 2.10 m with adjustable feet + 2 cradles with straps , Weight (kg): 6 , Number of rungs: 7
EM300 = Metal intermediate element 3.00 m with adjustable feet + 2 cradles with straps , Weight (kg): 8 , Number of rungs: 10
ESE120 = Insulated intermediate element 1.20 m + 1 cradle with strap , Weight (kg): 7.4 , Number of rungs: 4
ESE210 = Insulated intermediate element 1.20 m + 1 cradle with strap , Weight (kg): 4.7 , Number of rungs: 7
ESE300 = Insulated intermediate element 3.00 m + 2 cradles with straps , Weight (kg): 9.5 , Number of rungs: 10
