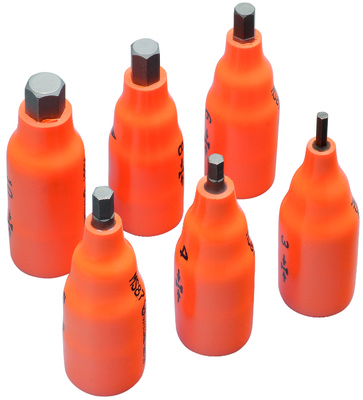

MS87 1000V μονωμένη αρσενική εξαγωνική πρίζα - τετράγωνη κίνηση 3/8"

STANDARD(S) : EN 60900 / IEC 60900 / ISO 1174-1 / ISO 2936
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the ratchet and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet spanner or an extension.

ADVANTAGES : Outer diameter reduced to a minimum for optimum accessibility on installations.
TABLE LEGEND : Other dimensions avilable on request (metric, inch).

MS87 03 = Diameter: 3 mm , Weight (g): 40
MS87 04 = Diameter: 4 mm , Weight (g): 40
MS87 05 = Diameter: 5 mm , Weight (g): 50
MS87 06 = Diameter: 6 mm , Weight (g): 50
MS87 07 = Diameter: 7 mm , Weight (g): 50
MS87 08 = Diameter: 8 mm , Weight (g): 60
MS87 10 = Diameter: 10 mm , Weight (g): 60
MS87 1/8” = Diameter: 1/8" , Weight (g): 40
MS87 5/32” = Diameter: 5/32" , Weight (g): 40
MS87 3/16” = Diameter: 3/16" , Weight (g): 50
MS87 7/32” = Diameter: 7/32" , Weight (g): 50
MS87 1/4” = Diameter: 1/4" , Weight (g): 50
MS87 5/16” = Diameter: 5/16" , Weight (g): 60
MS87 3/8” = Diameter: 3/8" , Weight (g): 60
