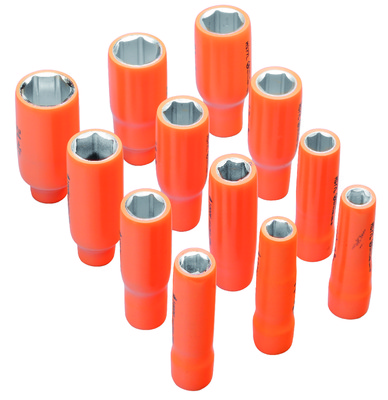

MS77L 1000V μονωμένη γυναικεία εξαγωνική υποδοχή - τετράγωνη κίνηση 3/8"

STANDARD(S) : EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.
Long sockets suitable for difficult access (long shafts and threads).

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the ratchet and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet spanner or an extension.

ADVANTAGES : Outer diameter reduced to a minimum for optimum accessibility on installations.
TABLE LEGEND : Other dimensions on request (metric, inch, Withworth, BA).

MS77L 08 = Diameter (mm): 8 , Weight (g): 40
MS77L 09 = Diameter (mm): 9 , Weight (g): 40
MS77L 10 = Diameter (mm): 10 , Weight (g): 60
MS77L 11 = Diameter (mm): 11 , Weight (g): 80
MS77L 12 = Diameter (mm): 12 , Weight (g): 80
MS77L 13 = Diameter (mm): 13 , Weight (g): 105
MS77L 14 = Diameter (mm): 14 , Weight (g): 120
MS77L 16 = Diameter (mm): 16 , Weight (g): 130
MS77L 17 = Diameter (mm): 17 , Weight (g): 150
MS77L 18 = Diameter (mm): 18 , Weight (g): 150
MS77L 19 = Diameter (mm): 19 , Weight (g): 150
MS77L 21 = Diameter (mm): 21 , Weight (g): 160
MS77L 22 = Diameter (mm): 22 , Weight (g): 170
MS77L 24 = Diameter (mm): 24 , Weight (g): 170
