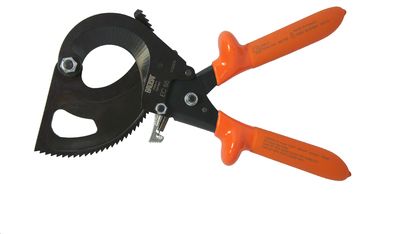

MS755 1000V Μονωμένος κόφτης καλωδίων καστάνιας Ø 55 mm
STANDARD(S) : EN 60900 / IEC 60900
USE : For cutting the majority of low voltage cables.
SPECIFICATIONS :
Cutting capacity :
- LV overhead cables NFC33-209: 3 x 150 mm² + 70 mm² Almelec
- Underground cables NFC 3340: 3 x 240 mm² + 95 mm².
- MV cables NFC 33-233, NFC 33-226: 1 x 240 mm².
Opening: 55 mm
Length (mm): 290
Copper: 400 mm²
Aluminium: 450 mm²
Almelec: 54.6 and 70 mm²
Steel: NO
TABLE LEGEND :
Overall length tolerance : ± 5 mm of the nominal value.
No Specifications
