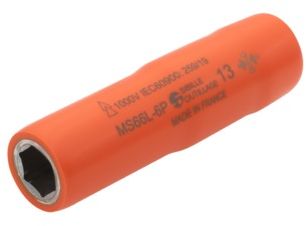

MS66 1000V μονωμένη θηλυκή εξαγωνική υποδοχή - τετράγωνη κίνηση 1/2" (12,7 mm)

STANDARD(S) : EN 60900 / CEI 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the pawl and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet or an extension cord.

ADVANTAGES : External diameter reduced to a minimum for optimal accessibility on the installations .

TABLE LEGEND : Other dimensions on request (metric, inch, Withworth, BA).

MS66 08 6P = Diameter: 8 mm , Weight (g): 55
MS66 09 6P = Diameter: 9 mm , Weight (g): 60
MS66 10 6P = Diameter: 10 mm , Weight (g): 60
MS66 11 6P = Diameter: 11 mm , Weight (g): 70
MS66 12 6P = Diameter: 12 mm , Weight (g): 80
MS66 13 6P = Diameter: 13 mm , Weight (g): 80
MS66 14 6P = Diameter: 14 mm , Weight (g): 80
MS66 15 6P = Diameter: 15 mm , Weight (g): 80
MS66 16 6P = Diameter: 16 mm , Weight (g): 80
MS66 17 6P = Diameter: 17 mm , Weight (g): 80
MS66 18 6P = Diameter: 18 mm , Weight (g): 80
MS66 19 6P = Diameter: 19 mm , Weight (g): 100
MS66 20 6P = Diameter: 20 mm , Weight (g): 100
MS66 21 6P = Diameter: 21 mm , Weight (g): 100
MS66 22 6P = Diameter: 22 mm , Weight (g): 120
MS66 23 6P = Diameter: 23 mm , Weight (g): 120
MS66 24 6P = Diameter: 24 mm , Weight (g): 140
MS66 27 6P = Diameter: 27 mm , Weight (g): 160
MS66 31 6P = Diameter: 31 mm , Weight (g): 180
