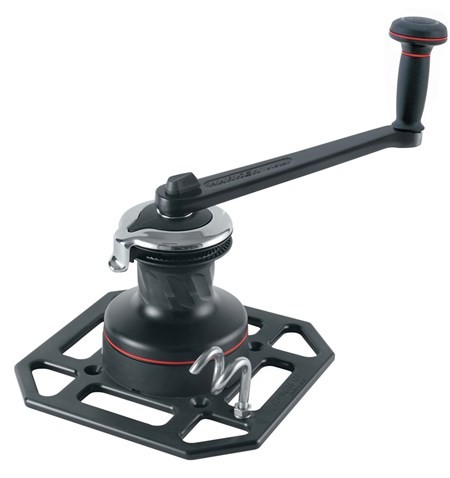

INTW500 Traction Winch 500 w/ B10ASG included

The Traction Winch provides the user with a lightweight portable winch mounted to a sturdy adaptor plate. Can be mounted to a tripod. Simple to use and ideal for a diverse range of lifting and load pulling applications. For use with multiple attachments depending on the environment and industry; from ratchet straps, M10 bolts, carabiners, to scaffold clamps. The Traction Winch 500 includes: Universal mounting plate, 40.2 Harken winch and Harken 10-inch winch handle.

Fiber Rope
The winch is designed for use with fiber rope up to 12 mm (1/2″) in diameter, reducing weight and allowing alignment to the load. The unique drum design maximizes grip on the rope, while the drum’s smooth surfaces reduce rope wear.

Design
The mounting plate is sculpted to remove excess weight and provides multiple attachment points without compromising strength. The pigtail line lead ensures correct alignment and loading of the winch for maximum efficiency.

Winches
Winches feature 17-4 PH stainless steel load-carrying gears and pins for strength and durability.

Minimum line Ø (mm)	8 mm
Minimum line Ø (in)	5/16 in
Maximum line Ø (mm)	12 mm
Maximum line Ø (in)	1/2 in
Weight (kg)	7 kg
Weight (lb)	15.4 lb
Maximum working load (kN)	4.9 kN
Maximum working load (kg)	500 kg
Maximum working load (lb)	1102 lb
Power ratio with 254 mm/10" winch handle	13.5:1/39.9:1
