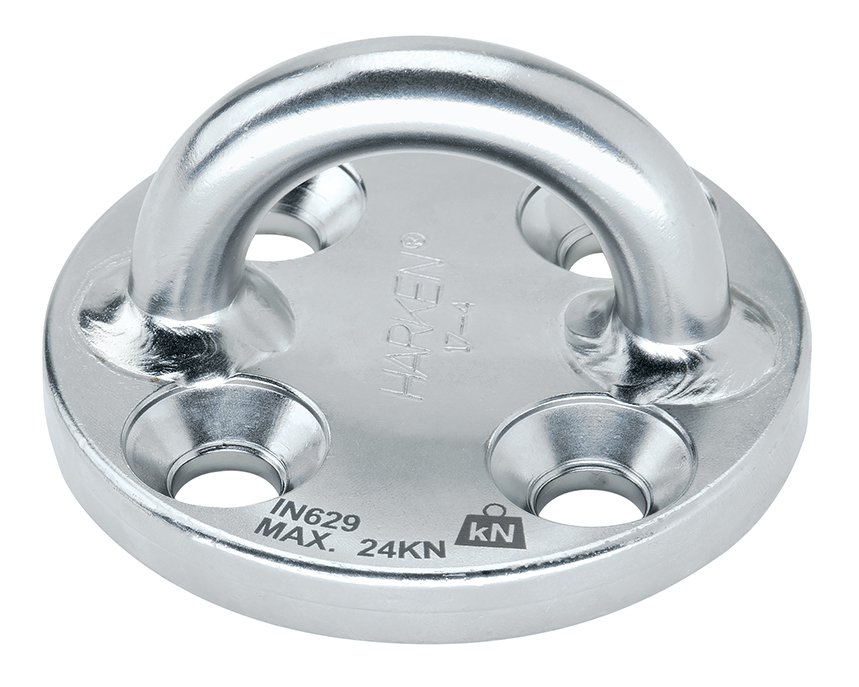

IN629 95 mm από ανοξείδωτο χάλυβα Στρογγυλό Standard Padeye

The IN629 17-4PH stainless steel round anchorage point is designed to be permanently installed on a structure so that an anchor device, or personal protective equipment can be attached to it, facilitating safe working at height. It is large enough to allow free movement of attachments and will accommodate carabiners.

A (mm)	95 mm
A (in)	3 3/4 in
C (mm)	44 mm
C (in)	1 3/4 in
D (mm)	48 mm
D (in)	1 7/8 in
E (mm)	51 mm
E (in)	2 in
F (mm)	27 mm
F (in)	1 1/16 in
G (mm)	44 mm
G (in)	1 3/4 in
Weight (g)	652 g
Weight (oz)	23 oz
Maximum rated load (kN)	24 kN
Breaking load (kN)	96 kN
Fasteners (mm)	12 FH mm
Fasteners (in)	1/2 FH in
Maximum number of users	5
