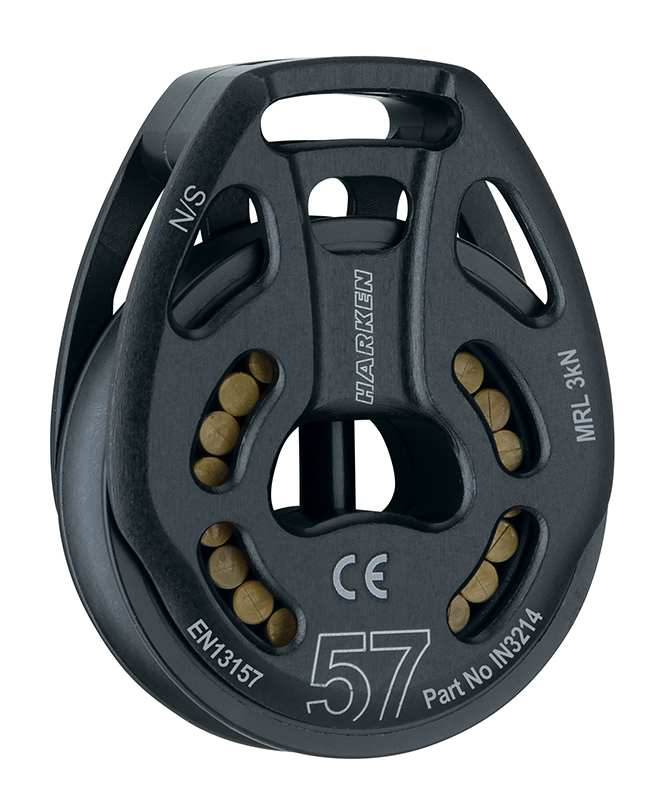

IN3214 Μονή Τροχαλία Black Magic 57 mm - Εξάρτημα βρόχου

With high strength-to-weight ratios and free-rolling, high-load roller bearings, Black Magic Air pulleys handle high dynamic and static loads where friction is an issue. The loop attachment pulley has a removable deadend post for attachment to a padeye. Lashings can also be used. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified. Loop not included.

Center cage keeps Delrin® roller bearings separated and parallel to reduce friction. Captive Delrin ball bearings carry side loads.

CE certified to EN13157 for hand-operated lifting equipment.

Sheave Ø (mm)	57 mm
Sheave Ø (in)	2 1/4 in
Length (mm)	76 mm
Length (in)	3 in
Weight (g)	92 g
Weight (lb)	0.2 lb
Maximum line Ø (mm)	12 mm
Maximum line Ø (in)	7/16 in
Maximum rated load (kN)	3 kN
Maximum rated load (lb)	674 lb
Rope type	Fiber
