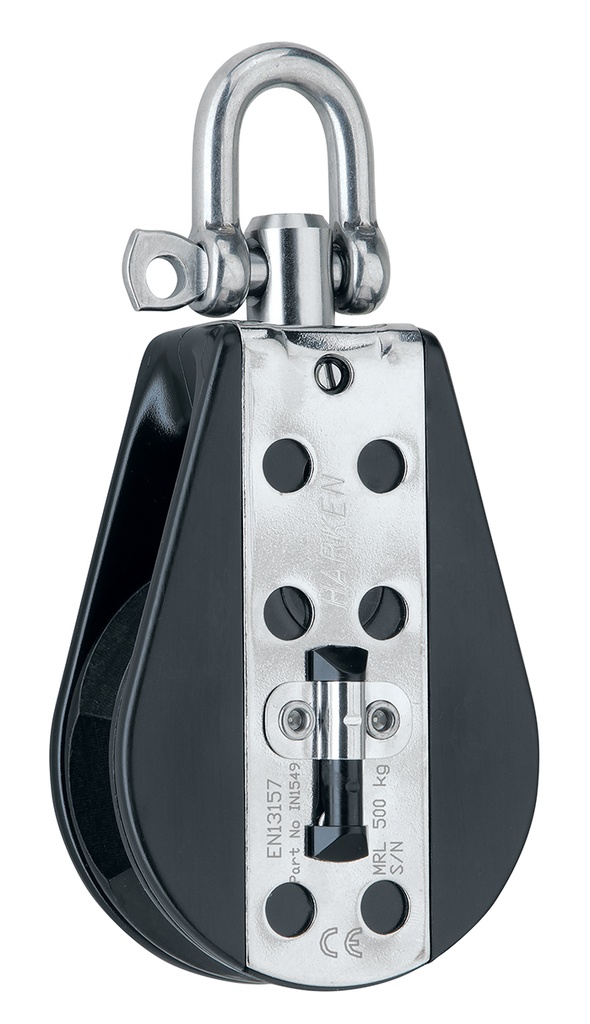

IN1549SSP 76 mm Classic Hexaratchet® Μονή Τροχαλία - Περιστρεφόμενο

Midrange Hexaratchet pulleys grip loaded ropes, relieving holding loads while maintaining quick ease and haul with complete control. A switch on the side engages and disengages the ratchet mechanism. Pulley shackle locks in two directions or swivels to keep rope from twisting. The simple construction requires no lubrication. Simply flush with fresh water to keep bearings free rolling. CE certified.

Pulley shackle locks in two directions or swivels to keep rope from twisting.

These robust pulleys are ideal for handling high loads. Free-running Delrin® ball bearings roll on flat races to allow fast haul and release under high or low loads. Metal and composite construction.

CE certified to EN13157 for hand-operated lifting equipment.

Sheave Ø (mm)	76 mm
Sheave Ø (in)	3 in
Length (mm)	156 mm
Length (in)	6 1/8 in
Weight (g)	397 g
Weight (lb)	0.88 lb
Shackle pin Ø (mm)	8 mm
Shackle pin Ø (in)	5/16 in
Maximum line Ø (mm)	14 mm
Maximum line Ø (in)	9/16 in
Maximum rated load (kN)	5 kN
Maximum rated load (lb)	1124 lb
Turns	clockwise
Rope type	Fiber
