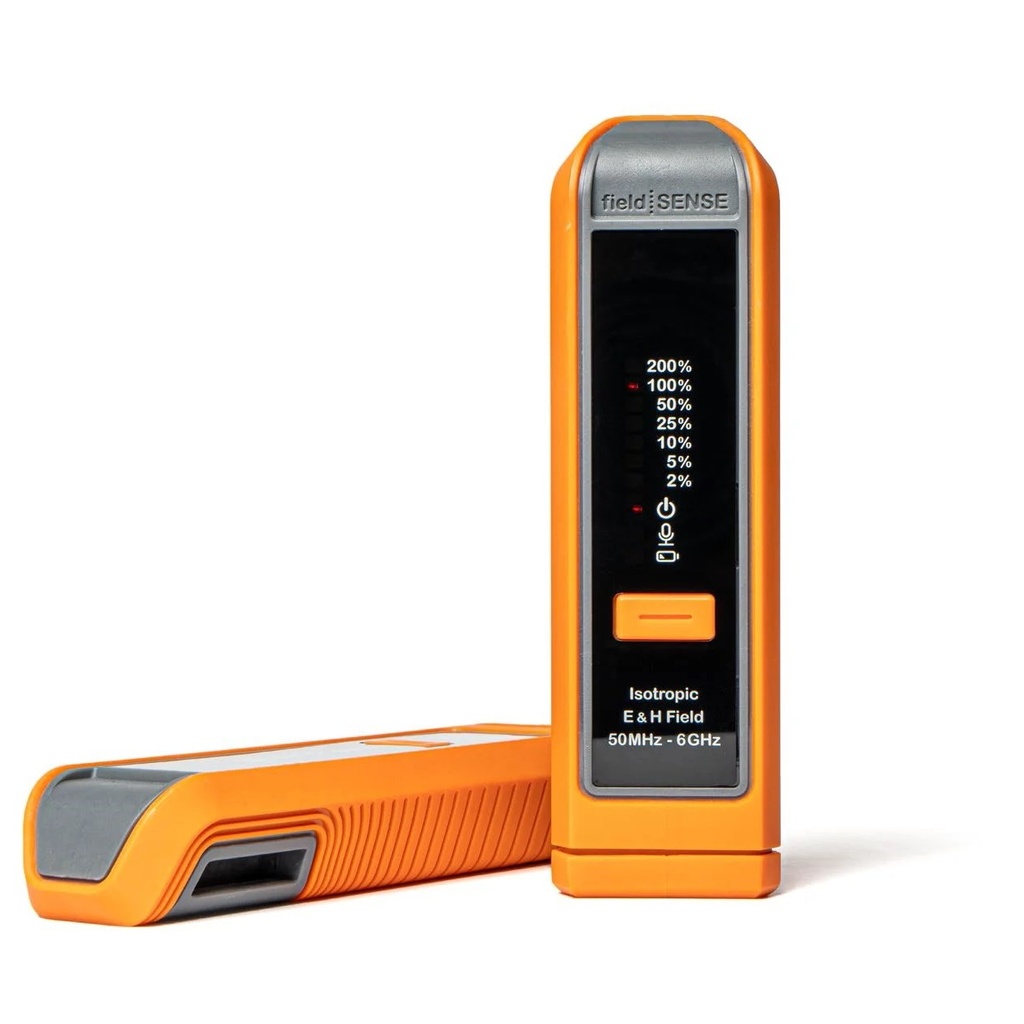

FieldSENSE 2.0 RF Monitor

The fieldSENSE 2.0 has a proven track record of ensuring on-site employee safety. The frequency range covers 50 MHz – 6 GHz, which covers all typical television and FM radio broadcast services and mobile telecommunications services amongst others. Exposure is accurately assessed, and a warning is sounded, should the levels approach and exceed the occupational limits.
Frequency: 50 MHz to 6 GHz
Usage: FM broadcast systems, mobile telecommunications (excl. mmWave)
Shaped Frequency response (E- & H-fields)
Two-year calibration interval
Two-year warranty included

fieldSENSE 2.0
Frequency range of operation: 50 MHz – 6 GHz

Frequency response: Shaped (Occupational/Controlled)*
− ICNIRP (1998)
− FCC [NCRP] OET65 (1997)
− Canada Safety Code 6 (2015)
Sensor polarisation: Isotropic
Isotropy: ± 3 dB
Probes: E-field & H-field ( 3 orthogonal probes each)
Result type: Time-averaged RMS power density
Calibration interval: 2 yearly

Level indicators 7 LED's: Percentage of Exposure Reference level
2%, 5%, 10%, 25%, 50%, 100%, 200% or more

Audio Alarm Indicators
- 50% (5th LED): 0.75 Hz beep
- 100% (6th LED): 1.5 Hz beep
-200% (7th LED): 3 Hz beep

Operation: Single button operation
CW damage levels: 26 dB above Standard | 40 000% of Standard
Data logging: E , H and Maximum & audio notes
PC connection: Micro USB connection, software available on website
Fail detection system: 3-axis accelerometer
Battery life: 6-12 months on average usage
Low battery warning: Flashing LED
Battery type: 2 x 1.5 V size AAA (LR03) alkaline

Mounting options
- Handheld (with wrist strap on lanyard)
- Harness (with supplied harness strap)
- Tripod socket (remote monitoring)

Included
- Rugged reusable zipper case
- Wrist strap (adjustable)
- Harness strap (adjustable)
- User manual & calibration certificate
- 2x AAA batteries & 2x spare AAA batteries

Dimensions: 146 x 26 x 42 mm | 5.7 x 1 x 1.7 inches
Weight (incl. batteries): 115 g | 0.25 lb
Temperature: Operating: -20 °C – 50 °C
Additional environmental t
