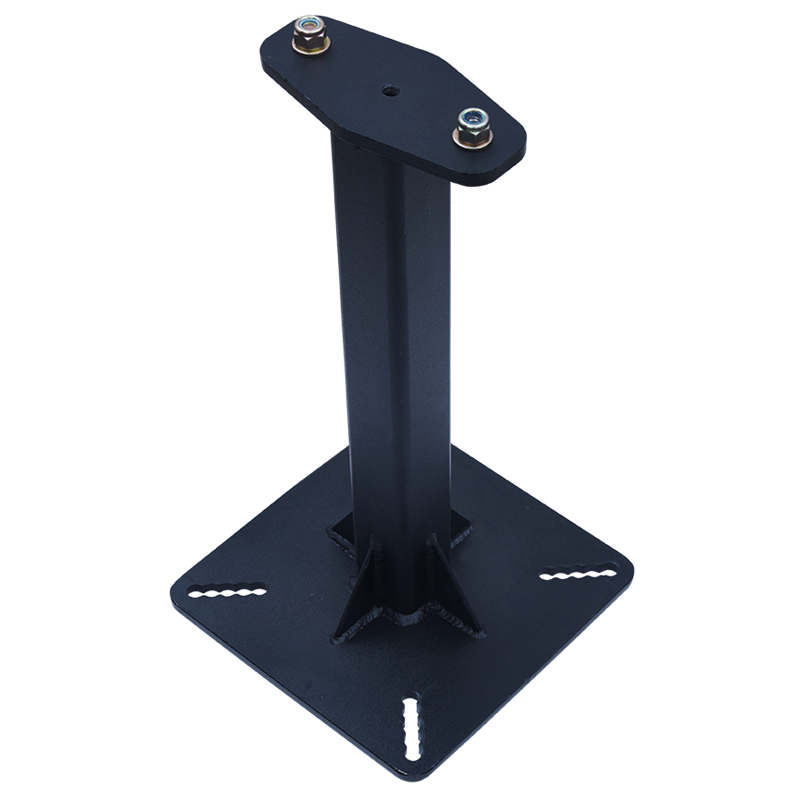

FA60211 Άκαμπτος στύλος από γαλβανισμένο χάλυβα, για οριζόντιο συρματόσχοινο σωσίβιο KS- Line (KS 4000)

Galvanized steel rigid post, height 300 mm and 500 mm, for horizontal wire rope lifeline KS 4000

Rigid post for lifeline, designed to be installed as an extremity point, an intermediate point or an angle.
Can be installed by clamping on a beam, by clamping on a metal beam or by chemical fixing in concrete through 4 pcs. of stainless steel M12 threaded studs.
Compatible with the intermediate bracket FA 60 204 00 and the extremity plate FA 60 201 00.

Material: Galvanized steel
Weight: 10.23 kg, 12.52 kg

Dimensions:
- Height: 300mm, 500 mm
- Width: 275 mm

Minimum clamping: 150 mm
Maximum clamping: 220 mm

Hardware:
- 2 CSK M12x45 screws, 2 Nylock nuts and 2 wahsers for fixing the extremity plate.
- 1 pc. of M12x30 hexagonal head bolt for fixing the intermediate bracket.

Breaking strength > 26 kN
