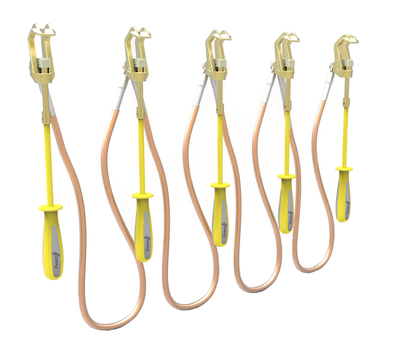

DMTTP69 Εξοπλισμός γείωσης και βραχυκυκλώματος για γυμνά εναέρια καλώδια LV

STANDARD(S) : IEC 61230

USE : Device for short-circuiting, and if necessary, earthing bare LV overhead lines.

SPECIFICATIONS :
Max. Isc : 8 kA / 1 s
Tightening capacity : from Ø 4 mm to Ø 32 mm, flat with maximum width of 40 mm.
Composition:
• From 3 to 6 screw-on clamps mounted on 0.35 m sticks.
• Copper short-circuit cables, 35 mm². Length : 1 m.
• Bayonet connector for earth cable (see CMTBT or ECBT320).

On request :
- 50 mm² short-circuit cable for max Isc of 13 kA/1s
- 70 mm² short-circuit cable for max Isc of 18 kA/1s

DMTTP69-4P = Composition: 4 clamps on sticks
DMTTP69-5P = Composition: 5 clamps on sticks
DMTTP69-6P = Composition: 6 clamps on sticks
DMTTP69-7P = Composition: 7 clamps on sticks
