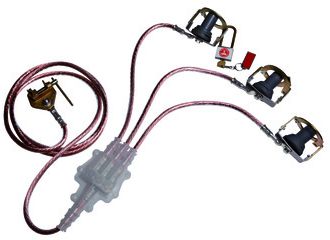

DMTPC Συσκευή βραχυκυκλώματος και γείωσης για υποσταθμούς με δακτύλιους τύπου plug-in

STANDARD(S) : IEC 61230
USE : Earthing and short-circuiting device for 250 amp sockets ref. DMTPC250 and 400 amp

consisting of:
• 1 trifurcation with 3 x 70 mm² short-circuiting cables, length 0.8 m and 1 earthing cable, length 2 m, ref. T70008C35020C
• 3 x 250A or 400A earth studs with their locking system (metal stirrup)
• 3 lockout-tagout padlocks
• an earth clamp ref. NB8

The kit is delivered in a carrying bag.
Set of 3 insulating rest studs and its padlock lockout system. Allows the cable disconnected from the transformer to be re-energised:
• for 250A - 24kV sockets ref. PRPC250
• for 400A - 24kV sockets ref. PRPC400
400A - 24kV lockout-tagout system with 3 insulating caps, and its padlock lockout system : ref. DCPC400

SPECIFICATIONS : Isc Max : 12,5 kA/1s

DMTPC250 = Short-circuiting and earthing for substations with plug-in type bushings 250A , Dimensions (mm): 600 x 250 x 200 , Weight (kg): 8
PRPC250 = Set of 3 insulating rest studs for MV substation connectors 250A , Dimensions (mm): 400 x 300 x 100 , Weight (kg): 3
DMTPC400 = Short-circuiting and earthing for substations with plug-in type bushings 400A , Dimensions (mm): 600 x 250 x 200 , Weight (kg): 10.5
PRPC400 = Set of 3 insulating rest studs for MV substation connectors 400A , Dimensions (mm): 400 x 300 x 100 , Weight (kg): 5
DCPC400 = Set of 3 lockout-tagout devices for MV transformer plug 400A , Dimensions (mm): 400 x 300 x 100 , Weight (kg): 4.5
