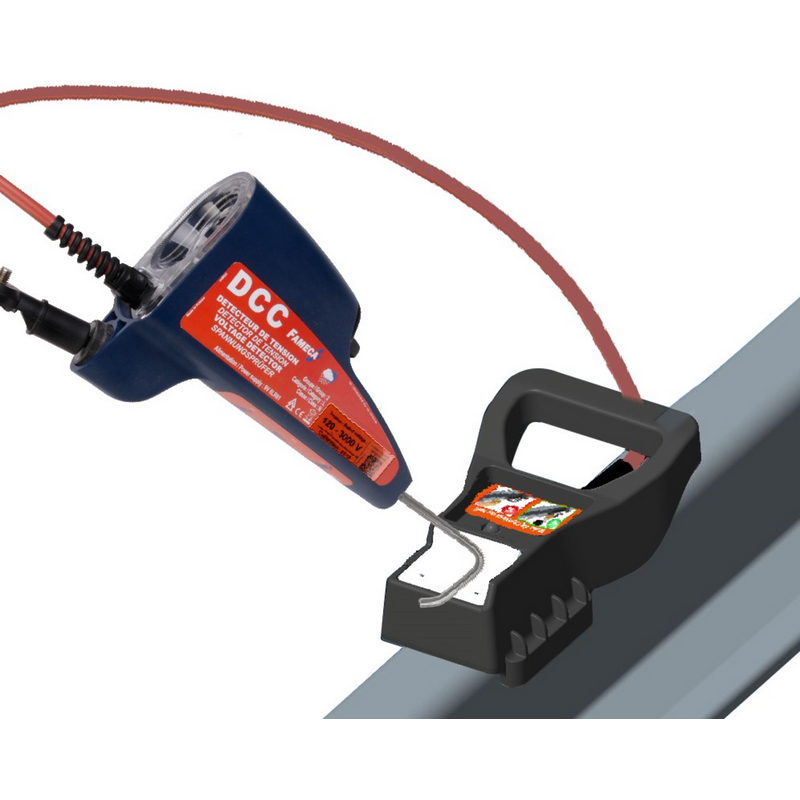

DCC Ανιχνευτής τάσης συνεχούς ρεύματος, διπολικός 120V - 3600V DC

DIRECT CURRENT VOLTAGE DETECTOR
IEC 61243-2 standards

/ Use
This device allows VAT to be carried out in contact with the component to be checked on direct current overhead installations (mainly electric traction: tram, metro, train):

• DC voltage detection (presence or absence of voltage)
• DC residual voltage detection (measurement of line discharge).
• Detection of real and induced alternating voltage (presence or absence of voltage).

/ Features
• Rated voltage range: Un = 120V to 3500V DC
• Double signaling of the presence of voltage: visual and/or audible indication.
• Presence of real voltage visual and audible red indication.
• Presence of residual DC voltage (load voltage) or leakage (insulator fault) visual indication orange LED.
• Presence of real or induced AC voltage blue visual indication.
• Self-test OK and No voltage green visual indication.
• Built-in self-checking device for checking (before and after use) the correct operation of the device.
• Operating temperature from -25°C to +55°C, humidity from 20% to 96%.
• IP65
• Outdoor use
• Battery: 9 volt alkaline - CEI / IEC 6LR61
• Delivered in a metal box (approx. 450 x 345 x 127 mm).

More product
• Avoid false positive VAT
• Permanent control of the earth connection cable
• Direct access to the battery and hermetically sealed electronic compartment.
• Optimized indications to be clearly seen whatever the working conditions
• Functional check by self-test, including cable continuity and battery level check with low battery indication.
• A light = a function => better understanding.
• Warning of exceeding voltage range (>5000V) visual and audible indication.
• Limitation of the current circulating in the ground cable to well below 3.5mA.
• Withstands the device against overvoltage up to 36 kV
• Robust housing with flexible decoupling adapter (AFLEX), several adapters available on request (U, APV & R)
• Ergonomic button allowing support even with insulating gloves.

DCCAPV = DCC detector with AFLEX APV tip
DCCR = DCC detector with AFLEX R tip (SNCF type)
DCCU = DCC detector with AFLEX U tip
