CORATRIF Ολοκληρωμένες συσκευές γείωσης και βραχυκυκλώματος

STANDARD(S) : IEC 61230

USE : For fixed ball points, diameters 20 and 25 mm, flat and cylindrical bars.
Suitable for fitting E240 lug barrels.

SPECIFICATIONS :
Composition :

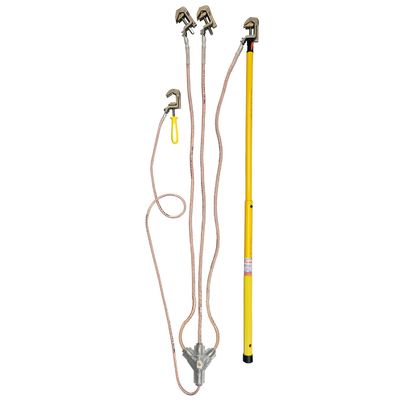

- 1 TRIFURCATION as defined in the table
- 3 NBD25AP phase clamps (hexagonal end fittings, 12 mm)
- 1 NBD25M earthing clamp (with ergonomic handle)
- 1 insulating stick TR245APV
- 1 metal storage case CM535

Composition of the CORATRIF08 :
- 1 TRIFURCATION as defined in the table
- 3 NBD25B phase clamps (bayonet end fittings)
- 1 NBD25M earthing clamp (with ergonomic handle)
- 1 insulating stick TR276B
- 1 metal storage case CM535

Composition of the CORATRIFSN :
- Identical to CORATRIF08 without the insualting stick TR276B

TABLE LEGEND : Other compositions and/or trifurcations on request.

CORATRIF = Max. Isc: 18.5 kA/1s , 3 Short-circuiting cables: 70 mm² - 1.5 m , Earthing cable: 35 mm² - 2.0 m , Item n° of the corresponding trifurcation: T70015C35020C
CORATRIF01 = Max. Isc: 25 kA/1s , 3 Short-circuiting cables: 95 mm² - 0.8 m , Earthing cable: 95 mm² - 3.0 m , Item n° of the corresponding trifurcation: T95008C95030C
CORATRIF02 = Max. Isc: 18.5 kA/1s , 3 Short-circuiting cables: 70 mm² - 0.8 m , Earthing cable: 35 mm² - 5.0 m , Item n° of the corresponding trifurcation: T70008C35050C
CORATRIF03 = Max. Isc: 18.5 kA/1s , 3 Short-circuiting cables: 70 mm² - 0.8 m , Earthing cable: 35 mm² - 10 m , Item n° of the corresponding trifurcation: T70008C35100C
CORATRIF08 = Max. Isc: 25 kA/1s , 3 Short-circuiting cables: 95 mm² - 1.5 m , Earthing cable: 35 mm² - 2.5 m , Item n° of the corresponding trifurcation: T95015C35025C
CORATRIFSN = Max. Isc: 25 kA/1s , 3 Short-circuiting cables: 95 mm² - 1.5 m , Earthing cable: 35 mm² - 2.5 m , Item n° of the corresponding trifurcation: T95015C35025C
