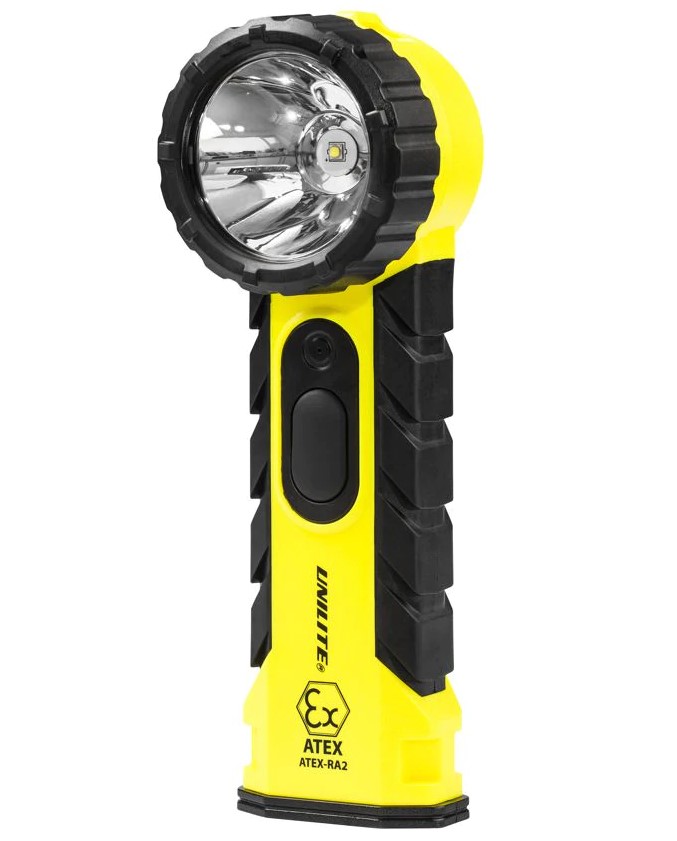

ATEX-RA2 ATEX/UL/IECEx zone 0 approved 350 Lumen LED torch

The Unilite ATEX-RA2 is an intrinsically safe hand torch for use in hazardous locations and has an output of 350 lumens from a Cree LED.

Rather than facing forwards on the end of the torch like a regular hand torch, the light is positioned at a 90° angle, so that for example, if you need to inspect the inside of a small unit you could easily do so without having to hold the torch horizontal to be able to get the light where you need it.

Two modes of high and low are available, and are controlled with a single large easy press switch which is useful for when you're wearing gloves.

The ATEX-RA2 is powered by four AA alkaline batteries which are securely fastened in the torch for safety and require a screwdriver to open the battery compartment.

Please note that only specific types of AA alkaline batteries are permitted for use in this torch, they are as follows: Energizer E91, Duracell MN 1500, Rayovac AL-AA and Varta 4906.

The durable synthetic industrial rubber construction allows for 1 metre impact resistance, while the rubberised handle gives a comfortable, non-slip grip.

Product Features

Zone 0 safe
Safety release valve to release hydrogen gasses
Rubberised micro switch with dual functions
Secure battery compartment requires crosshead screwdriver
Stainless steel belt clip
Built-in gas release vent
High effciency heat sinking

Certifications

Class I Div 1&2 Grp ABCD / Class II Div 1&2 Grp EFG
Class III / Temperature Code T4 IP54
File number: 261379

Gas: II 1G Ex ia IIC T4 Ga
Mine: I M1 Ex ia I Ma
Sira 15 ATEX 2166X

Gas: Ex ia IIC T4 Ga
Mine: Ex ia I Ma
IECEx SIR 15.0062X

Operational Modes

High: 350 lumens; 6 hours, 30 minutes run-time; 288 m beam range
Low: 140 lumens; 13 hours run-time; 184 m beam range

Technical Details

Type: ATEX hand torch
Operating Modes: High / Low / Off
Luminous Flux: Up to 350 lumens
Lamp: Cree LED
Beam Range: Up to 288 m
Batteries Required: 4 x AA alkaline batteries (not included)
Run Time: Up to 6 hours, 30 minutes (high)
Dimensions: 183 x 69 x 63 mm
Weight: 250 grams (excluding batteries)
Body Colour: Yellow
Body Material: Durable synthetic industrial rubber construction
Switch Type: Push button
Impact Resistance: 1 m
Environmental: Dust and water resistant to IP54 standard
Regulatory Compliance: CE / RoHS / ATEX / IECEx / UL

Packaging and Contents

Supplied in retail packaging and includes:
Unilite ATEX-RA2 hand torch x 1
Instruction leaflet x 1
