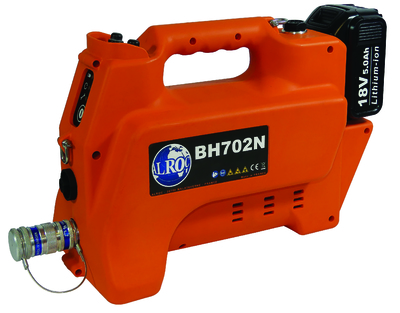

BH702N Hydraulic pump 700 bar with battery
18V Li-Ion 5A battery hydraulic unit with a pressure of 700 bar.
Can be connected to the hydraulic heads available in the catalogue.
Designed for intermittent operation.
ON/OFF button for power on. LED indicator: battery charge level, cycle indication, maintenance.
400W motor controlled with automatic stop at 700 bars.
Auto OFF after 10 minutes of inactivity.
Electronic and mechanical protection in case of overpressure or overheating.
Robust plastic shell with protection level: IP 42 according to NF EN 60529.
Manual emergency pressure relief.
Pump delivered in plastic case with: 2 batteries 18V Li-Ion 5Ah, 1 charger 220V, 1 wired remote control 3m and 0.5L of oil XV32.
This pump is supplied with a hydraulic quick coupling.
Pressure: 700 bars
Flow: LP : 1 L/min - HP : 0.15 L/min
Oil capacity: 0.8 L
Ref. series 115: BH702N-5
Ref. series 117: BH702N-7
Ref. series EDF: BH702N-E
• On-board control system: Cutting or crimping selector and steering
• Excellent weight/power and weight/autonomy ratios < 6 kg.
• 2-button wired remote control (3m): advance, hold, retract.
SIBILLE FAMECA Electric is a major actor in electrical risk prevention equipment as well as construction and network management equipment. As a member of the ESP division (Electrical Safety Products), SFE relies on the experience from its own manufacturing plants in Europe to offer its customers high-performance solutions for all three voltage fields (LV, MV and HV) all Made in EU.
