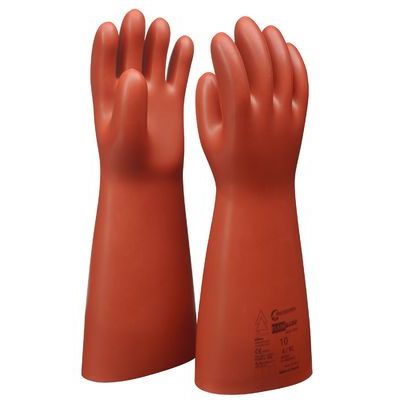

AFG Composite insulating gloves with arc protection
Standards
EN 60903 / CEI 60903
Test report regarding IEC 61482-1-2 (Class 2 / 7KA – 0,5 sec)
Test report regarding ASTM F2675 (ATPV = 71,6 cal/cm²)
Use
Composite insulating gloves with dielectric and arc flash protection for working in full safety without leather protectors.
Technical specifications
- Latex glove with a reddish orange outer coating of special high performance elastomer formula, black inner coating, cut edges, length 41 cm.
- Special properties (RC category) with mechanical protection.
- To reduce the effects of sweating, each pair is sold with a pairs of cotton liner. Separated, the cotton liners may be replaced, thus limiting bacteriological problems associated with residual humidity caused by sweating
ADVANTAGES :
- 3 protections in 1 glove : dielectric, mechanical and thermal protection
- Special formula outer coating provides an exceptional grip even in wet conditions
TABLE LEGEND :
Reference Size Length EN 60903:2004 Electric protection
AFG36-00* 6 to 12 360 mm Class00 (500 volts)
AFG36-0* 6 to 12 360 mm Class0 (1000 volts)
AFG36-1* 7 to 12 360 mm Class1 (7500 volts)
AFG36-2* 8 to 12 360 mm Class2 (17000 volts)
AFG36-3* 8 to 12 361 mm Class3 (26500 volts)
AFG41-4* 8 to 12 410 mm Class3 (36000 volts)
PENTA ESP (Electrical Safety Products)
We are PENTA 🚀 👷🏽♀️ Multinational industrial leader, pioneer and expert manufacturer of electrical safety solutions, committed to ensuring your safety at every intervention! 🤝 We are the essential partner for linemen, maintenance technicians and electricians working on power generation, transmission and distribution networks all over the world, and in 9 other areas of activity. With over 1200 employees in 18 subsidiaries worldwide, PENTA adapts its products to all electrical standards and regulations of each country. You will find our electrical safety solutions under different brands.
ASTM F2675/F2675M - 19
Determining Arc Ratings of Hand Protective Products, Developed and Used for Electrical Arc Flash Protection. The arc thermal performance value, ATPV cal / cm2Details
Share this product:
| Max operating voltage/ Test Voltage/ IEC 61482-1-2 | Class 00 - 500V (AC) / 2,500V (DC) / Class 2 (0.5s - 7kA) or Class 0 - 1,000V (AC) / 1,500V (DC) / Class 2 (0.5s - 7kA) or Class 1 - 7,500V (AC) / 11,250V (DC) / Class 2 (0.5s - 7kA) or Class 2 - 17,000V (AC) / 25,500V (DC) / Class 2 (0.5s - 7kA) or Class 3 - 26,500V (AC) / 39,750V (DC) / Class 2 (0.5s - 7kA) or Class 4 - 36,000V (AC) / 54,000V (DC) / Class 2 (0.5s - 7kA) |
| Glove Size | -6/XS or -7/S or -8/M or -9/L or -10/XL or -11/XXL or -12/3XL |
