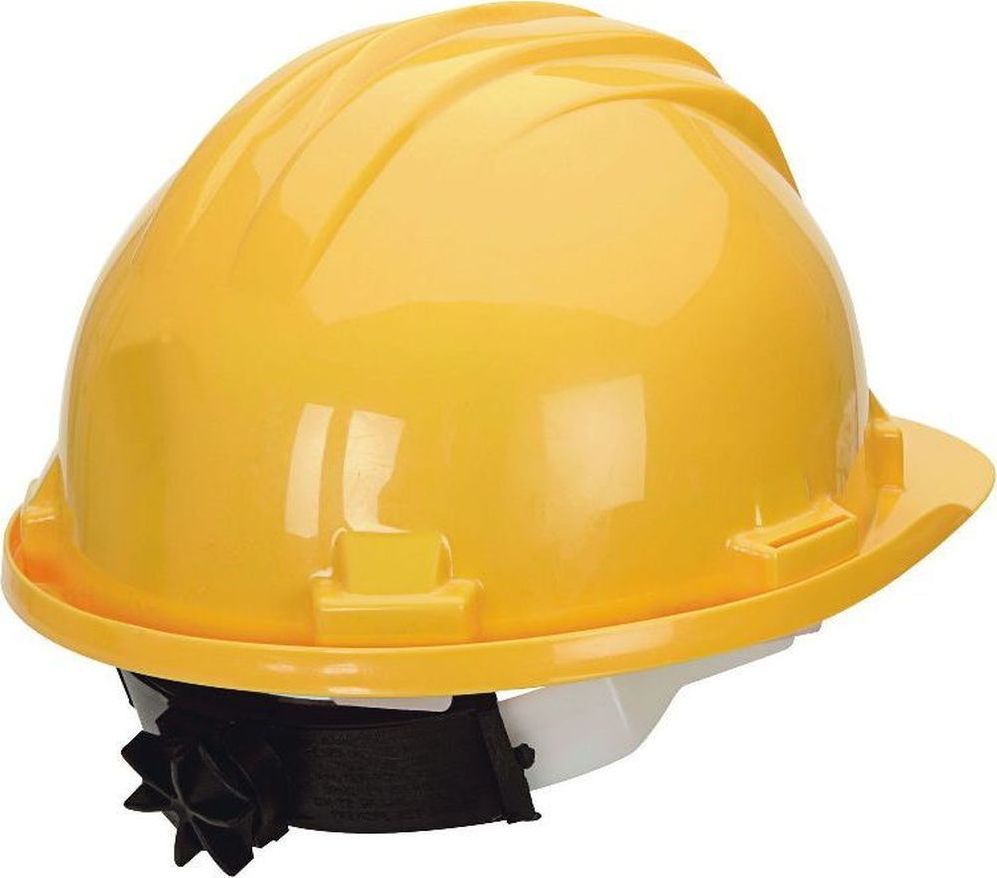

5-RG Safety Helmet with Rachet wheel

The Climax 5-RS safety helmet has been designed and manufactured to ensure optimal impact protection from objects such as stones, roofing tiles, bricks and other items of similar weight as well as from electrical discharges up to 1000Vac or 1500Vdc.

The helmet shell is manufactured of high-density injected polyethylene. The shell surface is smooth, with twin ribs along the length and a solid rib of triangular cross-section that provide greater rigidity to the helmet. The helmet also has a visor in the middle and a water rim around the remaining perimeter. The interior of the shell contains six housings to attach the harness.

The harness is manufactured of injected linear polyethylene with high impact absorption capacity. The harness contains a head strap, neck strap and six buffering straps. The head strap is covered in the front with a fabric sweat band. The height can be adjusted with three different positions.

Material: HDPE
Ranging temperatures -20 ºC / + 50 ºC
Head harness Automatic adjustment
Electrical protection: Up to 1000V AC and 1500V DC (low voltage installations
Points harness: 6
Class: 0
Weight: 322 gr
30mm helmet slot
Sweatband included

EN 397:2012+A1:2012
EN 50365:2002

4.80 € 4.8 EUR 4.80 €

561.20 Lek


  • Color

This combination does not exist.

Add to Cart Buy Now

CLIMAX
CLIMAX

Productos Climax is one of the main PPE manufacturers with 100% Made in Spain. The experience and the “know-how” acquired since Productos Climax was born in 1984, have permitted us to offer a product adapted to our customers needs in one hand , and to face the constant complexities of national and international markets. Under the slogan “we work for your safety”.


EN 397 Industrial Safety Helmets
MANDATORY tests: IMPACT: Energy spread to the head form must not exceed 5 kN after the fall of an object of 5 kg at 1m high, performed at room temperature: +50°C and at -10°C. PENETRATION: The tip of the test mass used (3 kg from 1m height) must not come into contact with the skull, performed at room temperature: +50°C and at -10°C. FLAMMABILITY: The helmet is exposed to a flame, and it must not burn with flame emission more than 5 seconds after removal of the flame. OPTIONAL tests: EXTREME TEMPERATURE: testing impact and penetration are performed at +150°C, at -20°C or -30 °C temperatures. ELECTRICAL (440V A.C): Protects against a short accidental contact with electric leads under voltage up to 440 Vac. LATERAL DEFORMATION (LD): Protects against lateral compression. The maximum deformation of the helmet should be ≤40 mm. MOLTEN METAL (MM): The helmet is not deformed or penetrated by splashes of molten metal.
Details
EN 50365 Electrical Insulating Helmets
This standard is for helmets used for working live or close to live parts on installations not exceeding 1000 V a.c. or 1500 V d.c. Testing to EN 50365 exceeds testing under EN397 for electrical properties. Marking: double triangle + class +batch number.
Details

Best Value
Fast Delivery
Quality Consistency
