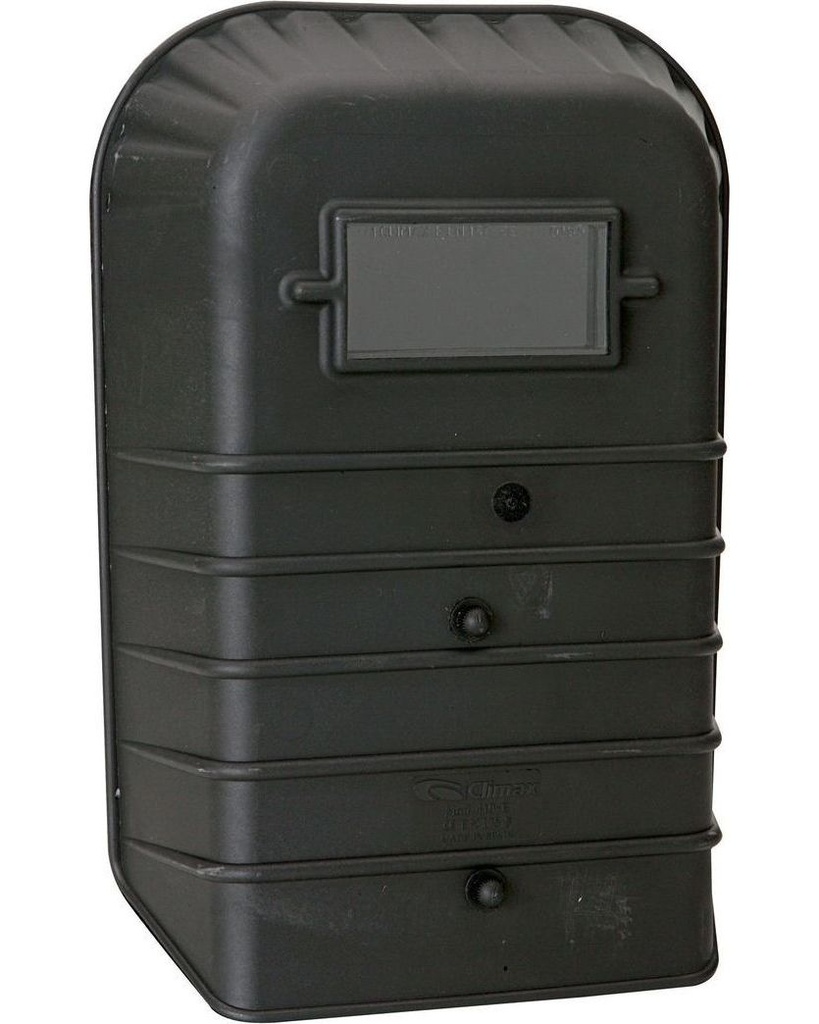

410 Hand Held Welding shield

The Climax 410 hand-held welding shield has been designed to provide effective protection against the radiation emitted during welding processes, as well as against incandescent particles released during such processes. The welding shield is also recommended for protection against the impact of low-energy, highvelocity particles. Due to its design and dimensions, the shield covers the entire face and neck. The lightweight design, ergonomic handle and optical quality of the glass allow the wearer to work comfortably and without inconvenience.

The body is made of black injection-moulded polyamide with fibreglass and has a flat, rectangular front with two sides and a flat upper surface, that forms an angle of approximately 60° with the front.
The handle system consists of a closed handle joined to the inner face of the front by means of a guide system with anchoring stops. The entire system is made of plastic.

The lens holder is fixed, consisting of a ledge in the form of a rectangular window at the front (used to hold the lens) and a rectangular frame fitted from the back and used to hold the lenses.
The frame is secured by means of two metal bolts.
The lens assembly is composed of a cover lens, a filter lens and a backing lens.
All lenses measure 110 x 55 mm and are CE-certified.
The shield is manufactured with a standard filter lens of shade 12, although a wide range of other filter shades are also available

Material: Polyamide and Fiberglass
Welding glass measurements:
105 x 50 mm
110 x 55 mm
Shades: 9 – 14

EN 169 CE
EN 175 CE
