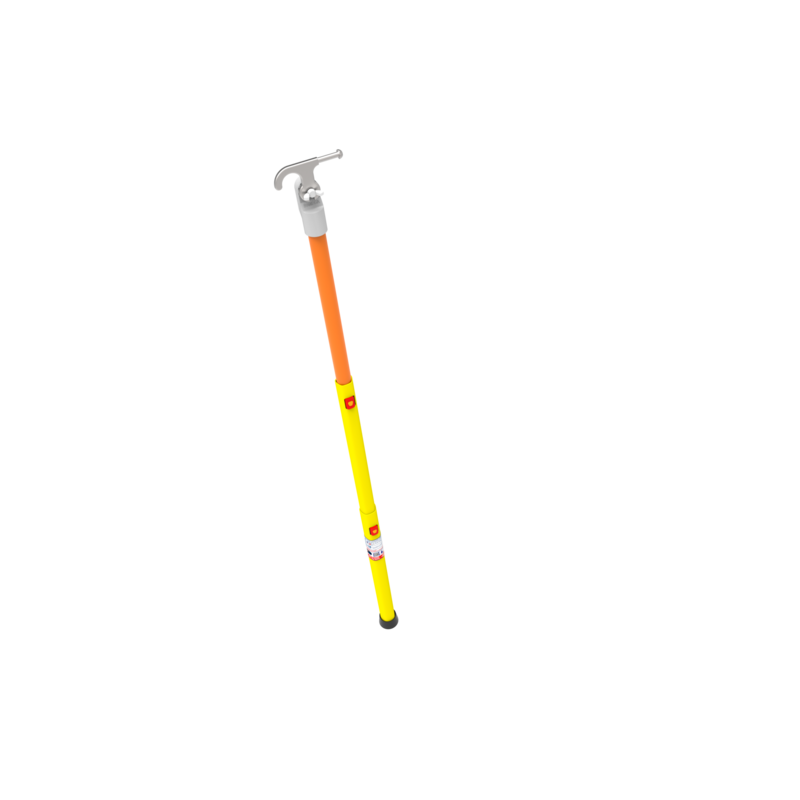

PENTA-POLE Compact Συμπαγές μονωτικό ραβδί 5 τμημάτων

Standards
IEC 60855-1 / IEC62193 / ASTM F 1826

Use
Insulating stick with five sections for any kind of weather for :
- Voltage detection
- Grounding for LV
- Disconnector manoeuvres
- All works that do not generate big mechanical stress

Technical specifications
The insulating stick is made up with a Ø 28mm fiberglass foam-filled tube enforce by the standard IEC 60855-1 and a pentagonal tube.

PPOL2/015 / Operating voltage (V) HTA (1 000 V à 50 000 V), HTB (> de 50 000 V) / No of Elements 2 / Lenght max unfolded (m) 1.54m / Folded lenght (m) 0.90m / All weather 45kV / Dry condition 72kV / End pip diameter Ø28mm
PPOL2/020 / Operating voltage (V) HTB (> de 50 000 V) / No of Elements 2 / Lenght max unfolded (m) 2.05m / Folded lenght (m) 1.17m / All weather 72kV / Dry condition 110kV / End pip diameter 28mm
PPOL2/025 / Operating voltage (V) HTB (> de 50 000 V) / No of Elements 2 / Lenght max unfolded (m) 2.50m / Folded lenght (m) 1.36m / All weather 132kV / Dry condition 150kV / End pip diameter 28mm
PPOL3/013 / Operating voltage (V) HTA (1 000 V à 50 000 V), HTB (> de 50 000 V) / No of Elements 3 / Lenght max unfolded (m) 1.32m / Folded lenght (m) 0.55m / All weather 36kV / Dry condition 72kV / End pip diameter 28mm
PPOL3/020 / Operating voltage (V) HTA (1 000 V à 50 000 V), HTB (> de 50 000 V) / No of Elements 3 / Lenght max unfolded (m) 2m / Folded lenght (m) 0.88m / All weather 45kV / Dry condition 132kV / End pip diameter 28mm
PPOL3/025 / Operating voltage (V) HTA (1 000 V à 50 000 V), HTB (> de 50 000 V) / No of Elements 3 / Lenght max unfolded (m) 2.46m / Folded lenght (m) 1m / All weather 72kV / Dry condition 132kV / End pip diameter 28mm
