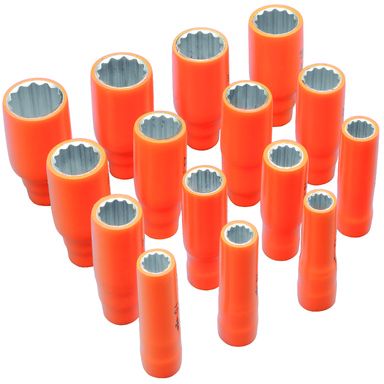

MS66L 1000V μονωμένη γυναικεία εξάγωνη πρίζα, σειράς ψηλός, τετραγωνική κίνηση 1/2" (12,7 mm)

STANDARD(S) : EN 60900 / CEI 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
USE : Manual sockets suitable for use with standard or mechanically locking ratchets.
Long sockets suitable for difficult access (long shafts and threads).

SPECIFICATIONS :
Chrome vanadium steel.
Socket with 4 ogive-type recesses inside the female square to accommodate the crimped ball of the pawl and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).
A flange is included for optimum electrical protection when used with a ratchet or an extension cord.

ADVANTAGES : Outer diameter reduced to a minimum for optimum accessibility on installations.

TABLE LEGEND : Other dimensions available on request (metric, inch, Withworth, BA).

MS66L 10 6P = Diameter: 10 mm , Weight (g): 140
MS66L 12 6P = Diameter: 12 mm , Weight (g): 150
MS66L 13 6P = Diameter: 13 mm , Weight (g): 150
MS66L 14 6P = Diameter: 14 mm , Weight (g): 150
MS66L 16 6P = Diameter: 16 mm , Weight (g): 150
MS66L 17 6P = Diameter: 17 mm , Weight (g): 160
MS66L 18 6P = Diameter: 18 mm , Weight (g): 170
MS66L 19 6P = Diameter: 19 mm , Weight (g): 210
MS66L 20 6P = Diameter: 20 mm , Weight (g): 220
MS66L 21 6P = Diameter: 21 mm , Weight (g): 230
MS66L 22 6P = Diameter: 22 mm , Weight (g): 260
MS66L 23 6P = Diameter: 23 mm , Weight (g): 300
MS66L 24 6P = Diameter: 24 mm , Weight (g): 310
