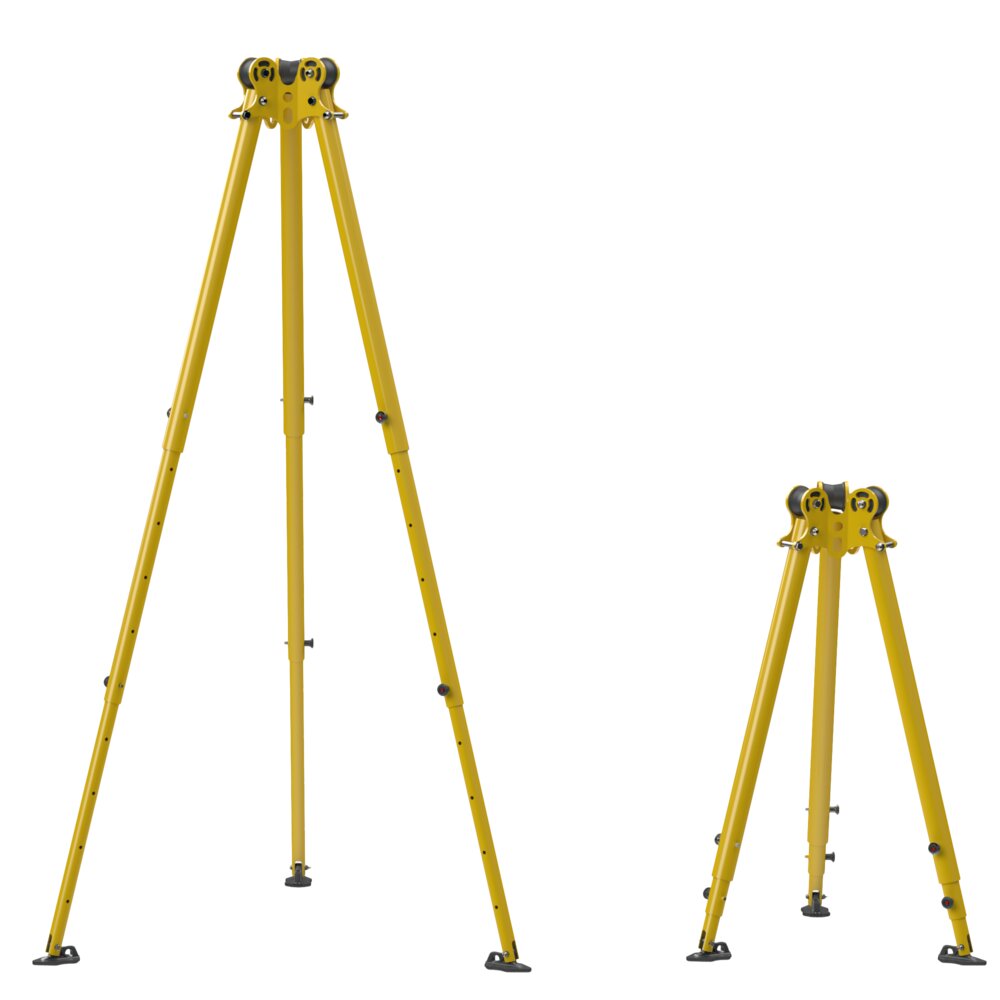

TM 15 MINI Lightweight aluminum safety tripod

CEN/TS 16415
EN 795/B

Description

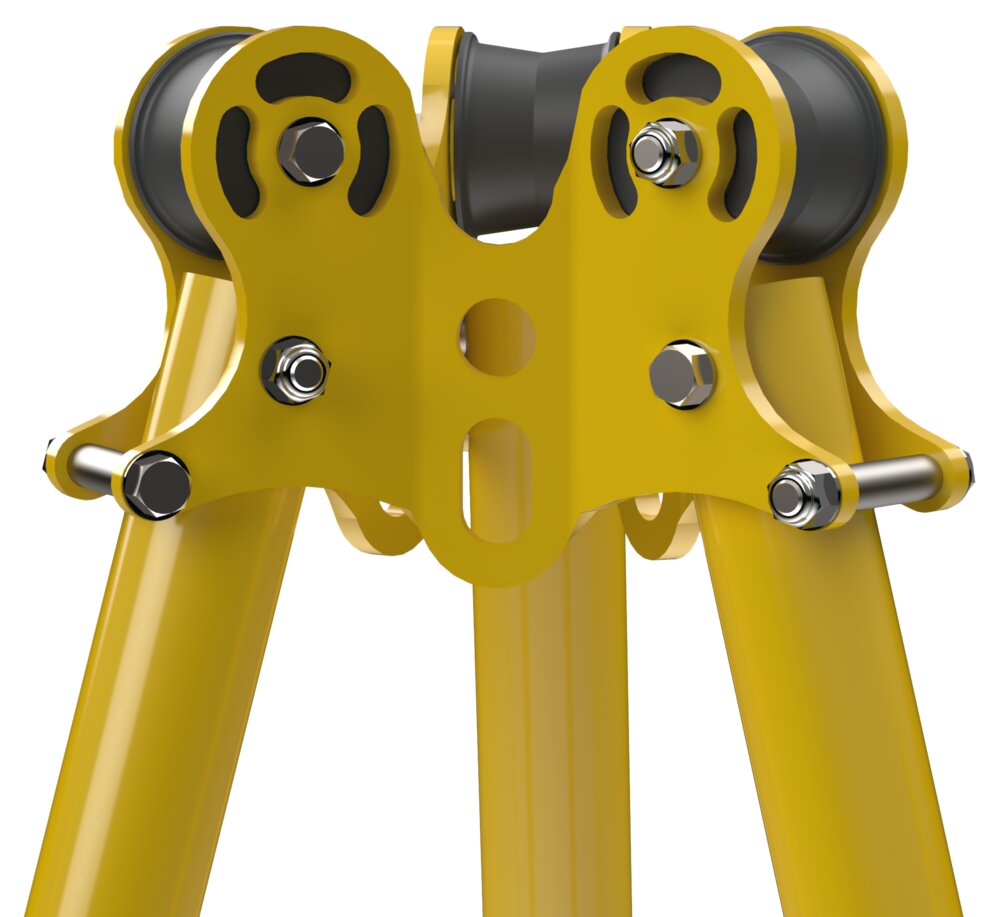

The lightweight aluminum safety tripod TM9-N is can anchor point compliant with the EN795/B and TS 16415/B norms and can be used as a component of fall protection equipment. The TM9-N tripod provides protection for up to 3 people simultaneously. The TM9-N tripod consists of a powder-coated steel head, equipped with 3 ball-bearing polyamide rollers for guiding the work rope of RUP and CRW series devices. The head is also equipped with 3 anchor points located on the sides of the head. Each of these points can be used as an anchor point for fall protection equipment. One such point can only be used by 1 user at a time.

Technical specification
Tripod
Height: 111 - 227 cm
Diameter of the hole under the tripod: 65 - 127 cm
Spacing of legs: 55- 109 cm
Tripod weight: 19 kg
Transport dimensions: 133,3 x 33 x 28,8 mm
Max. number of users for lifting and lowering: 3
Max. weight of load to be lifted or lowered: 1,000 kg

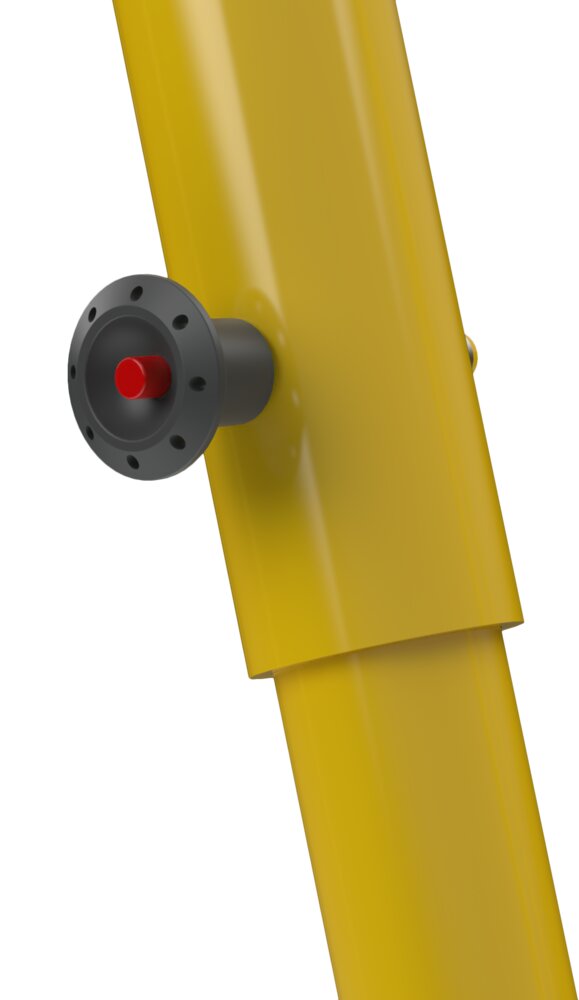

Legs
Material: aluminium
Finishing: anodizing

Head
Material: aluminium alloy
Finishing: powdercoat
Number of anchorage points: 3
Rollers: Number of rolls: 3

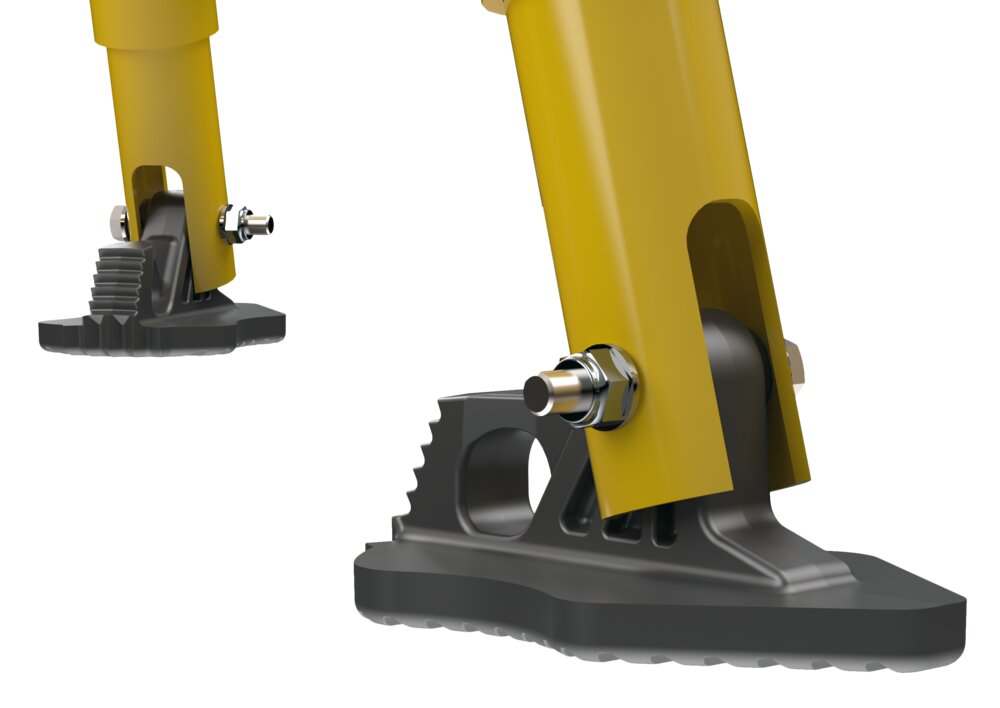

Feet
Material:
composite
