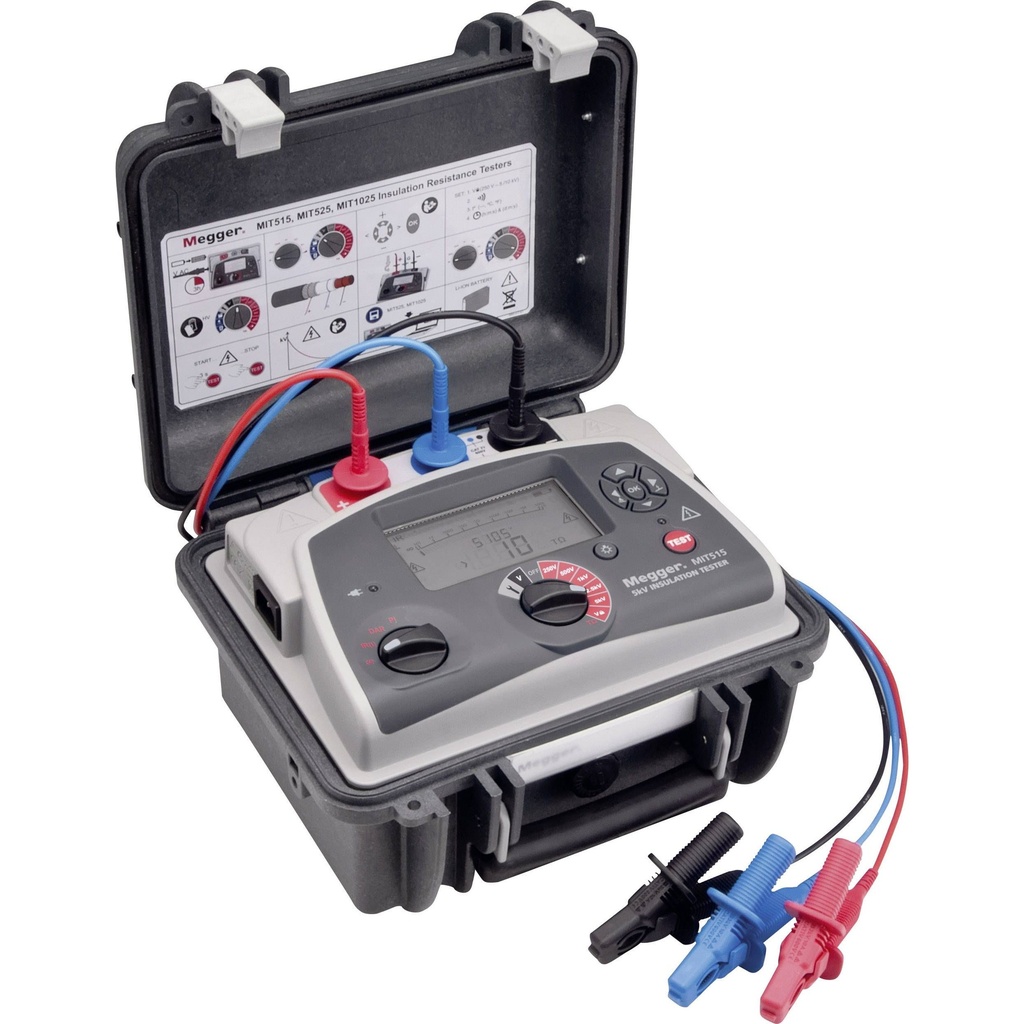

MIT515 5 kV go / no-go insulation resistance tester

STANDARD(S) : IEC 61010-1, CAT IV 600 V

USE :
The Insulation Resistance (IR) test is a qualitative test that indicates the effectiveness of a product’s electrical insulation.
Applications include cables, transformers, motors/generators, circuit breakers and bushings.
The IR test is ideal for measuring and recording long term stability of insulation over time, a process known as trending.
IR tests are temperature dependent and require adjustment to a reference temperature.
Storage models offer a temperature recording option.

SPECIFICATIONS :
Measure up to 10 TΩ (5 kV) / 20 TΩ (10 kV) max. insulation resistance
Timed IR plus PI and DAR diagnostic tests
Operate with dead battery when on line power/mains
Rapid charge Li-ion battery – up to 6 hrs continuous testing (5 kV)
Dedicated voltmeter function (30 V to 660 V)
CATIV 600 V safety rating
Large LCD display with automatic backlight
Noise filter – rejects up to 3 mA noise
High altitude operation up to 3000 m
MIT525/1025 Additional features
- Dielectric Discharge (DD), Step Voltage (SV) and ramp test functions
- Advanced memory with time/date stamp, on screen recall
- Real time clock
- Download of memory via isolated USB (type B) interface (USB cable to PC)
- PowerDB Lite asset management software
Included accessories:

User guide CD, Power lead, 3 m leadset x 3, medium insulated clips, 3 m leadset x 3, large insulated clips (MIT1025 only).
USB cable and PowerDB Lite software (MIT525 and MIT1025 only).

ADVANTAGES :
- Improved productivity – operate from line power/mains if battery dead
- Li ion battery - extended capacity, rapid charge
- Advanced memory with time/date stamp
