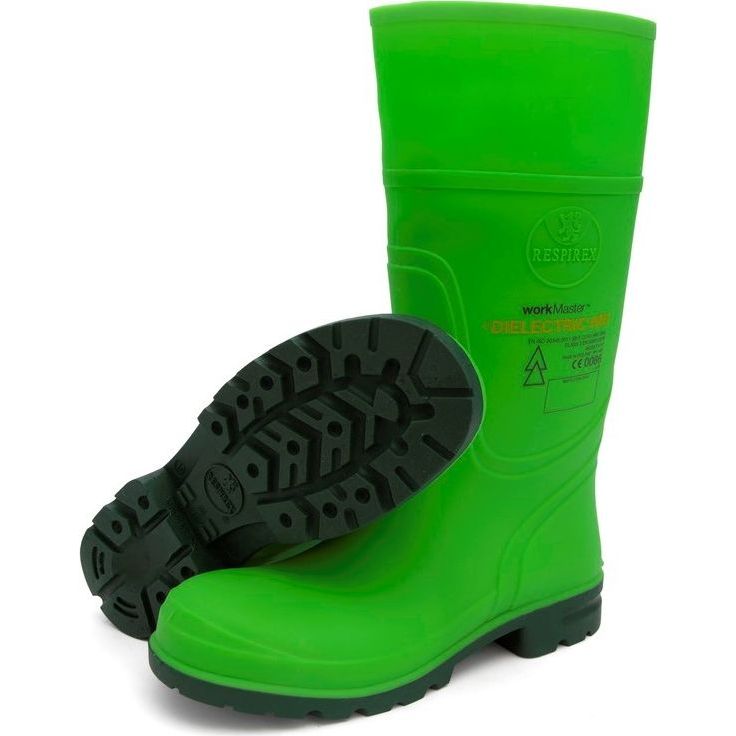

B01723 Dielectric HV3 Boot SB E SRA, Class 3
A Class 3 AC (EN 50321-1:2018) electrically insulating dielectric boot with an integral steel toe cap. The Workmaster™ Dielectric HV3 boot allows high voltage live working at up to 26.5kV with every boot tested at 30kV.
200 Joule epoxy coated steel toe cap
Heat resistant sole EN 20345:2012 HRO, 60 seconds at 300°C
Cold insulation to EN ISO 20345:2012 CI
Slip resistant moulded sole
Cleated outsole for maximum grip
Energy absorbing tunnel system in heel to EN 20345:2011 E
Injection moulded using our proprietary HV3 compound for a seamless boot with superior electrical insulation properties
Non-wicking knitted nylon lining
Step voltage protection up to 35kV**
Arc flash protection – Meets the requirements of ASTM F2621-2019 at 40Cal/cm²
Lightweight for increased wearer comfort
Superb low temperature flexibility down to -40°C
Environmentally friendly PVC and Halogen free construction
Biodegradeable & Phalate free
Ergonomic cushioned insole (removable & machine washable) for greater wearer comfort
CE marked on the shaft with date and year of manufacture
Machine washable at up to 40°C
Five year shelf life
EN ISO 20345:2011 - SB E SRA
ELECTRICALLY INSULATING FOOTWEAR
EN 50321-1:2018 Class 3 AC
Dielectric HV3 Sales Sheet.pdf
Dielectric HV3 Boot User Instructions.pdf
Respirex™ International are a leading supplier of personal protective solutions, specialising in the design and manufacture of high-performance chemical, particulate and respiratory protective clothing and protective footwear. Including our industry leading chemical protective footwear and our world class dielectric boots and overboots..
EN 20345 - SBToe Cap (Shock resistant to 200J)
EN 20345 SRA - Slip ResistantTested on ceramic tile with sodium lauryl sulphate (a diluted soap solution)
EN 20345 I - Insulation against electricityELECTRIC SHOCK RESISTANT sole - CSA Z195-14 standard Method-Tested at 18000 V in dry conditions; max voltage 1.0 mA. Secondary protective equipment to be added to primary protective equipment. Not to be used in places with explosives or gas.
EN 13832-3This is the European safety standard for chemical protective footwear and is divided into three parts. Part 1 deals with terminology and test methods, Part 2 with requirements for limited contact with chemicals and Part 3 with requirements for prolonged contact with chemicals. For certification to EN 13832 Part 3, boots are tested for chemical degradation over a period of 23 hours against a minimum of three chemicals from a list of 15 designated challenge chemicals contained in Part 1. Part 2 is only intended for limited contact with chemicals and is not recommended for people working with, or in proximity to, dangerous or aggressive chemicals.
EN 50321:2018EN 50321:2018 Electrical Insulated Footwear. Class 00 = provide protection up to a maximum working voltage of 500V, used at this class for wiring and other electrical maintenance. CLASS 0 = protect workers in areas where electrical stunning equipment is used, such as abattoirs, boots with electrical protection to EN 50321-1:2018 Class 0 are required. Dielectric class 0 safety boots are suitable for areas with a maximum working voltage of 1kV. Class 1 = suitable for areas with a maximum working voltage of 7.5kV and are available also as overboots ideal for personnel who have to continually enter and exit high voltage areas. CLASS 2 = protect from risk of electric shock from high voltages suitable for utility workers, electricians and telecom live working up to voltages of 17.5kV. CLASS 3 = provides protection to a maximum working voltage suitable for use in evironments with a maximum working voltage of 26.5kV. CLASS 4 = provide protection up to a maximum working voltage of 36000V. This gives the highest certified level of electrical protection available. At time of writing there are currently no Class 4 dielectric boots available in the market.
ASTM F1117Dielectric Footwear. Specification for Dielectric Footwear. Covers acceptance testing of dielectric overfoot and overshoe footwear designed to provide additional isolation or insulation of workers if in accidental contact with energized electrical conductors, apparatus, or circuits.
Share this product:
|Color||BKR Black or LGR Lime Green|
|Footwear size||35 or 36 or 37 or 38 or 39 or 40 or 41 or 42 or 43 or 44 or 45 or 46 or 47 or 48 or 49 or 50|
