B00950/20 Dielectric Boot SB E CI HRO SRC FO, Class 2

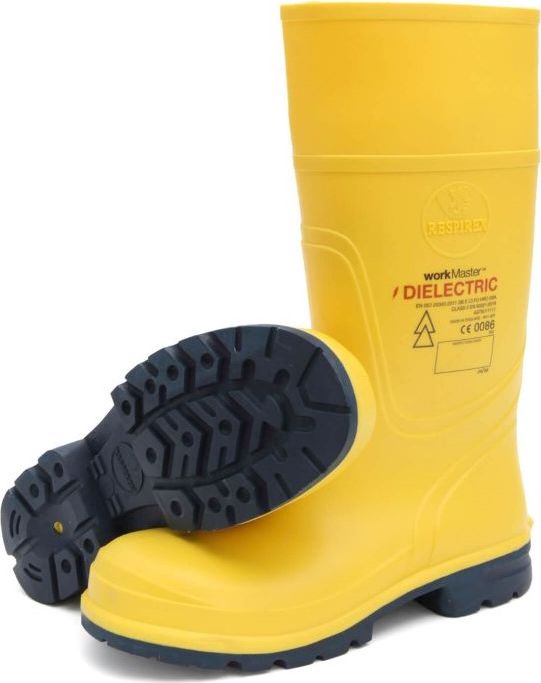

An electrically insulating Class 2 dielectric boot with an integral steel toe cap and vulcanized rubber sole for superior slip resistance. The Workmaster™ Dielectric boot provides high voltage protection of up to 20kV over the complete boot for over 8 hours, and 35kV over the sole for 3 minutes. This high-voltage boot is suitable for use by electricians, utility engineers and live working up to 17kV.
200 Joule epoxy coated steel toe cap (soft toe version also available)
Heat resistant sole EN 20345:2012 HRO, 60 seconds at 300°C
Cold insulation to EN ISO 20345:2012 CI
Fuel and oil resistant sole
Vulcanized rubber sole for improved slip resistance - 30% better than a conventional safety boot sole
Durable, cut-resistant vulcanised rubber sole, significantly extends working life, even in harsh terrain
Cleated outsole for maximum grip in wet and oily conditions (SRC)
Energy absorbing tunnel system in heel to EN 20345:2011 E
Injection moulded using our proprietary Dielectric compound for a seamless boot with excellent electrical insulation properties
Non-wicking knitted nylon lining
Step voltage protection up to 35kV
Arc flash protection – Meets the requirements of ASTM F2621-2019 at 40Cal/cm²
Ergonomic cushioned insole (removable & machine washable) for greater wearer comfort
CE marked on the shaft with date and year of manufacture
Machine washable at up to 40°C
Shelf life of over 10 years
EN ISO 20345:2011 - SB E CI HRO SRC FO
ELECTRICALLY INSULATING FOOTWEAR
EN 50321:2018 Class 2
STEP VOLTAGE PROTECTION
ASTM 2413 EH (18kV)
PDF file iconDielectric Boots Sales Sheet.pdf
PDF file iconDielectric Boots User Instructions.pdf
Respirex™ International are a leading supplier of personal protective solutions, specialising in the design and manufacture of high-performance chemical, particulate and respiratory protective clothing and protective footwear. Including our industry leading chemical protective footwear and our world class dielectric boots and overboots..
EN 20345 - SBToe Cap (Shock resistant to 200J)
EN 20345 SRC - Slip ResistantSlip Resistance Outsole Tested on ceramic tile with sodium lauryl sulphate (a diluted soap solution) & Tested on steel with glycerol
EN 20345 I - Insulation against electricityELECTRIC SHOCK RESISTANT sole - CSA Z195-14 standard Method-Tested at 18000 V in dry conditions; max voltage 1.0 mA. Secondary protective equipment to be added to primary protective equipment. Not to be used in places with explosives or gas.
EN 20345 CI - Insulation against coldFor resistance against cold, EN ISO 20345 footwear is tested for 30 minutes at 1-20°C
EN 20345 HRO - Heat resistant outsoleHeat-resistant footwear features an outsole which must be able to resist 300°C for 60 seconds. can be used in close proximity to hot surfaces such as freshly laid tarmac.
EN 50321:2018EN 50321:2018 Electrical Insulated Footwear. Class 00 = provide protection up to a maximum working voltage of 500V, used at this class for wiring and other electrical maintenance. CLASS 0 = protect workers in areas where electrical stunning equipment is used, such as abattoirs, boots with electrical protection to EN 50321-1:2018 Class 0 are required. Dielectric class 0 safety boots are suitable for areas with a maximum working voltage of 1kV. Class 1 = suitable for areas with a maximum working voltage of 7.5kV and are available also as overboots ideal for personnel who have to continually enter and exit high voltage areas. CLASS 2 = protect from risk of electric shock from high voltages suitable for utility workers, electricians and telecom live working up to voltages of 17.5kV. CLASS 3 = provides protection to a maximum working voltage suitable for use in evironments with a maximum working voltage of 26.5kV. CLASS 4 = provide protection up to a maximum working voltage of 36000V. This gives the highest certified level of electrical protection available. At time of writing there are currently no Class 4 dielectric boots available in the market.
ASTM F1117Dielectric Footwear. Specification for Dielectric Footwear. Covers acceptance testing of dielectric overfoot and overshoe footwear designed to provide additional isolation or insulation of workers if in accidental contact with energized electrical conductors, apparatus, or circuits.
