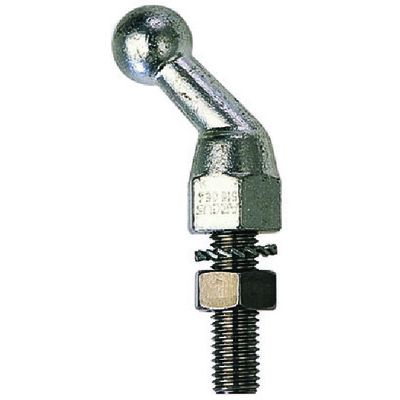

Angled fixed ball point
USE : Used to make an electric contact on busbar.
FC2012 = Ball Ø D: 20 mm , Max. Isc: 18.5 kA/s , W (mm): 22 , Ø d (mm): M 12 , L2 (mm): 56 , L1 (mm): 37 , L (mm): 93 , Wrench: 6
FC2516 = Ball Ø D: 25 mm , Max. Isc: 31.5 kA/s et 40 kA/0.5s , W (mm): 27 , Ø d (mm): M 16 , L2 (mm): 76 , L1 (mm): 46 , L (mm): 122 , Wrench: 8
SIBILLE FAMECA Electric is a major actor in electrical risk prevention equipment as well as construction and network management equipment. As a member of the ESP division (Electrical Safety Products), SFE relies on the experience from its own manufacturing plants in Europe to offer its customers high-performance solutions for all three voltage fields (LV, MV and HV) all Made in EU.
