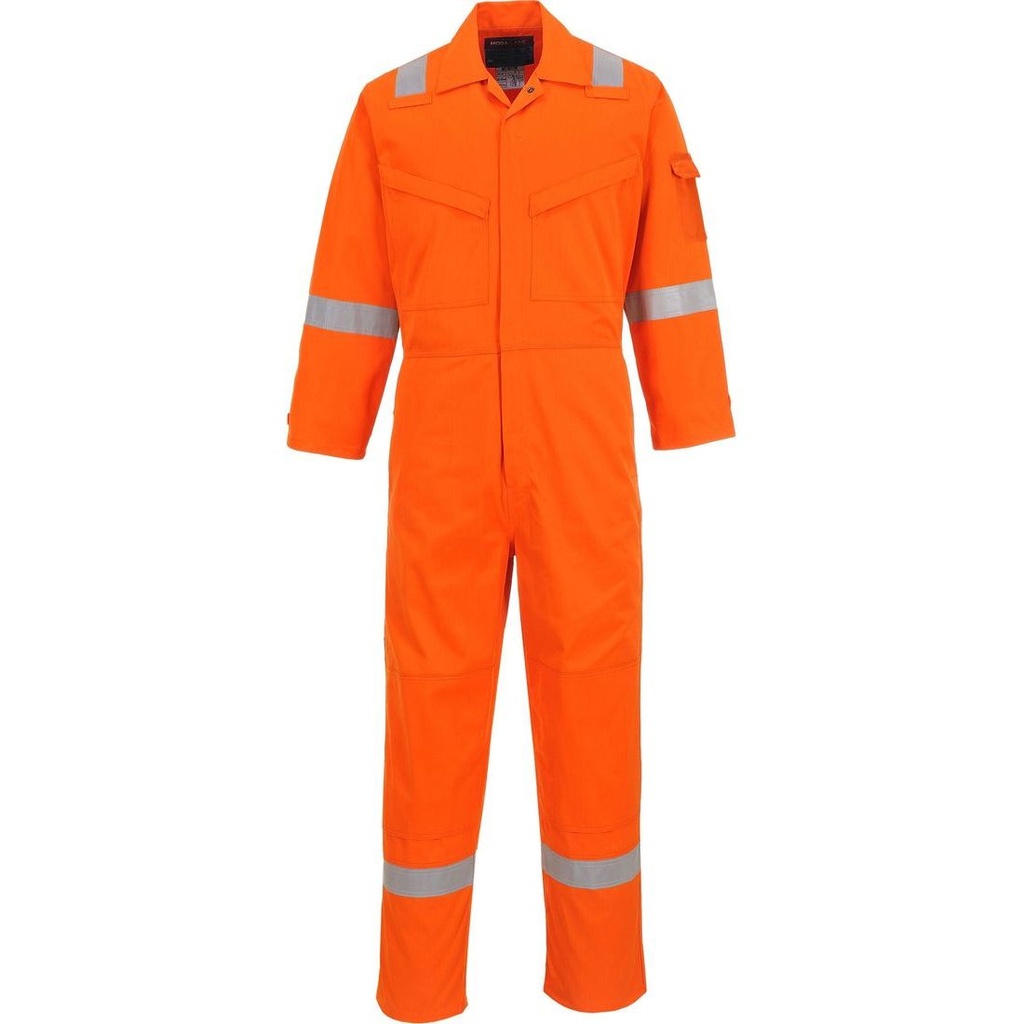

AF53 Araflame Gold Coverall
This super lightweight coverall offers outstanding flame resistant protection. The Araflame fabric is soft and breathable but provides excellent tear and tensile strength. Ideal for a variety of industries including oil and gas, petrochemical and many more. Coverall features include triple stitching throughout, secure pockets and waist elastication for ease of movement.
- Inherent flame resistant qualities will not diminish with washing
- Protection against radiant, convective and contact heat
- Sleeve pocket
- Two back patch pockets
- Triple-stitched seams for extra durability
- Durable, strong and long lasting brass zips
- Hook and loop cuffs for a secure fit
- Radio loop for easy clipping of a radio
- Sew on flame resistant industrial wash tape
- Two-way zip for quick and easy access
- CE-CAT III
- Two tier knee pad pockets allowing two positioning options
- 10 pockets for ample storage
- CE certified
- 40+ UPF rated fabric to block 98% of UV rays
Shell Fabric: Araflame™ Plus: 93% Meta-aramid, 5% Para-aramid, 2% Carbon Fibre, 150g
EN ISO 11612 (A1+A2, B1, C1, F1)
IEC 61482-2 IEC 61482-1-1 (ELIM 3.8CAL/cm² )
ASTM F1959/F1959M-12 (ATPV 5.9 CAL/CM² (HAF 63.1%))
For over 117 years we’ve possessed an unrelenting ambition to produce the world’s most trusted and requested protective wear. Through the decades, we have continuously proven our dedication to quality, producing world beating safety garments, foot protection, hand protection and PPE, while pushing the boundaries in protection technologies. Technologies that make the workplace a safer place.
EN ISO 11612 Heat & FlameThis test uses standard methods and conditions to predict the performance of fabric/garments in the event of contact with heat or ﬂames. Speciﬁc testing is listed below: Dimensional change, Limited ﬂame spread (A1+A2), Convective heat (B) - 3 levels, Radiant heat (C) - 4 levels, Molten aluminium splash (D) – 3 levels, Molten iron splash (E) – 3 levels, Contact heat (F) – 3 levels (temperature 250 degrees Celsius)
IEC 61482-2 Protective Clothing Thermal Arc HazardsStandard for protective clothing against the thermal effects of an electric arc event. Two different test methods: Open Arc IEC 61482-1-1 and Box test EN 61482-1-2. OPEN ARC - IEC 61842-1-1 (USA). The first result, ELIM - The maximum incident energy (cal/cm²) the garment can withstand before the wearer would have a 0% probability of a second degree burn. The second result is either: ATPV (Arc Thermal Performance Value, cal/cm²) The maximum incident energy the garment can withstand before the wearer would have 50% probability of a second degree burn or EBT (Energy Break Open Threshold, cal/cm²) The incident energy at which a 50% probability of a breakopen occurs resulting in a second degree burn. Since ELIM indicates an energy value at 0% probability of a second degree burn and ATPV/EBT at 50% probability, the ELIM value is usually lower than ATPV/EBT. Large differences between the ELIM and ATPV/EBT results highlight the importance of wearing several layers of garments to ensure you are properly protected. EN 61482-1-2 (Europe) is evaluated in two classes in the same test: APC1 protects against electric arc of 4kA (arc energy 168 kJ), APC2 protects against electric arc of 7kA (arc energy 320 kJ). Unlike the American standard, there is not a result scale in this garment tests, only two levels where the garment either passes or fails. A garment with one layer of Flame Retardant fabric usually passes APC 1 - even thin shirt fabrics. To pass APC 2, a system with two or three fabric layers or a lined garment is normally required. This makes it more difficult to adapt the protection to the risk, without compromising on comfort. As APC 1 is a relatively low level of protection, we always recommend a basic protection of at least 8 cal/cm².
EN 1149 Anti-Static (ATEX)This standard specifies PPE Clothing used in explosive environments (i.e. ATEX) where there is a risk that the garments could create sparks (source of ignition), which in turn could ignite explosive materials. Anti-Static garments marked EN 1149-5 are intended to be worn in Atex zones 1, 2, 20, 21 and 22. In oxygen enriched atmospheres or in zone 0, the Anti-Static garments should not be used without first being approved by a qualified Safety Engineer, as wear and tear can affect the protection of the garment and it is crucial that they are worn the correct way in these environments.
ISO 13506 Manikin Fire TestThis test method provides the general principles for evaluating the performance of complete garments or protective clothing ensembles in a ﬂash ﬁre or other short duration exposures where the Burn Injury Prediction 0% is measured.
Inherent FR GarmentsInherent fabric guarantees lifelong protection for the wearer. The FR properties lie in the molecular structure of the fibres and cannot be washed or worn out. PROS: excellent heat and ARC protection, excellent colour fastness even after numerous washings hence good cost in use performance, typically lighter weight solutions with excellent comfort levels, typically used in less dirty environments where the corporate look is also important. CONS: limited protection against molten metal splash, typically a more expensive fabric than FR treated. The most common FR fibers used in protective clothing are modacrylics and aramids
Share this product:
|Color||ORR Orange or NAR Navy|
|UK/Int Coverall Sizes||36 - 36/S or 38 - 38/M or 40 - 40/M or 42- 42/L or 44 - 44/L or 46 - 46/L or 48 - 48/XL or 50 - 50/XL or 52 - 52/XXL or 54 - 54/XXL|
