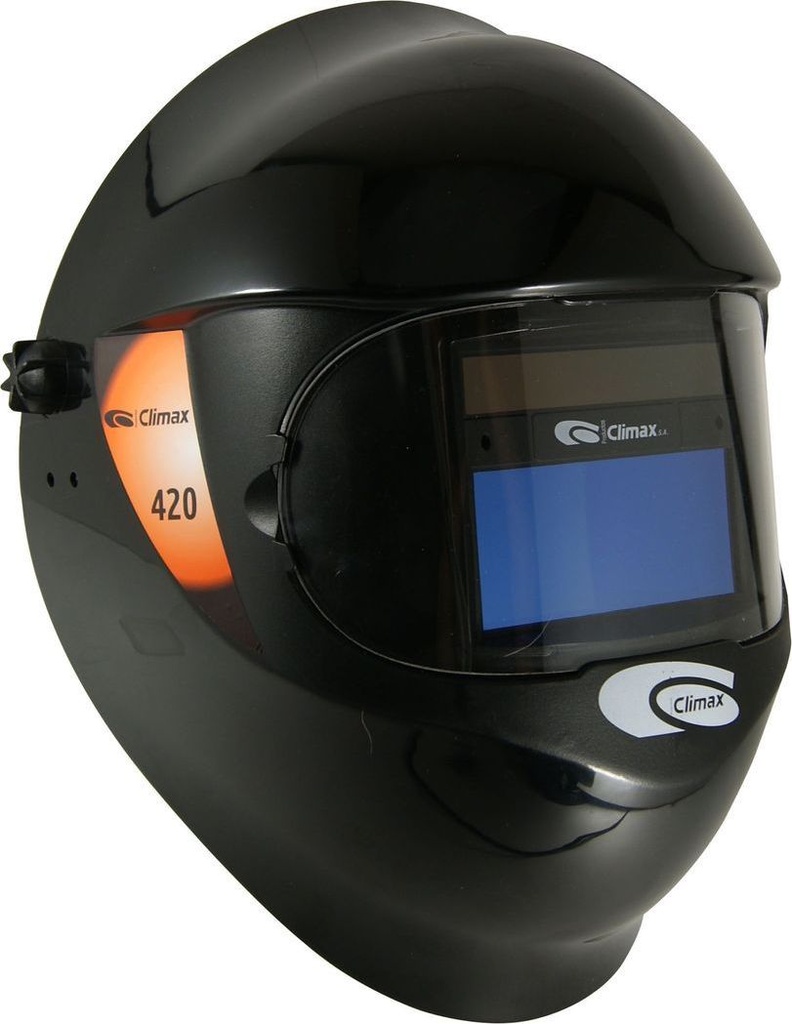

420 Autodarkering Welding Helmet
The welding helmet mod. 420 can be used for all types of welding processes as of 5A (MIG / MAG electrodes, TIG / WIG, plasma-jet cutting and welding) except por laser and gas welding. It is specially recommended for TIG welding as it is equipped with a special detector for this kind of welding.
The fastener system consists of a headgear with two straps (contour strap and cross strap). The circumference of the contour strap can be adjusted comfortably by turning the wing nut at the rear of the contour strap and the length of the cross strap can also be adjusted to seven different positions. The contour strap has two cushions that prevent discomfort at the points where the strap touces the wearer’s head.
Helmet shell size: 325 x 235 mm
Shades: Clear 4 and variable 9-13
Power supply: Solar cells and batteries
Harness size: 56-64 cm
Size 110 x 90 x 9 mm
Viewing area 100 x 41 mm
Light detectors 2
Optical class 1
Diffusion of light 1
Variation of the transmission factor in the visible 1
Dependence of the transmission factor in the visible with the angle of incidence 1
ENSITIVITY: Sensitive knob
POTENTIOMETER: Shade knob
DELAY: It controls the speed at which the filter returns to the light state after between 0.1 to 1 s
EN 175: 1997
EN 379: 2003+A1:2009
Productos Climax is one of the main PPE manufacturers with 100% Made in Spain. The experience and the “know-how” acquired since Productos Climax was born in 1984, have permitted us to offer a product adapted to our customers needs in one hand , and to face the constant complexities of national and international markets. Under the slogan “we work for your safety”.
EN 166 Eye ProtectionProtection of the eye from mechanical hazards likely to damage the eye and quality of optical lens, also include Optional protection from Chemical (liquids and dust), Electrical Arc, Thermal (Molten metal splashes and hot solids projections) risks. Lens treatments (Optional): K (AS): Resistance to surface damage by ﬁne particles (anti-scratch treatment), N (AF): Resistance to fogging of oculars (anti-fog treatment)
EN 175 Welding Eyes and Face ProtectorsSpeciﬁcations for the safety requirements for eye and face protection equipment used to protect the operator’s eyes and face against harmful optical radiation and other speciﬁc risks or hazards in usual welding, cutting or similar operations.
EN 379 Automatic Welding FiltersAutomatic welding ﬁlters which switch their luminous transmittance to a lower predetermined value when an arc is ignited.
