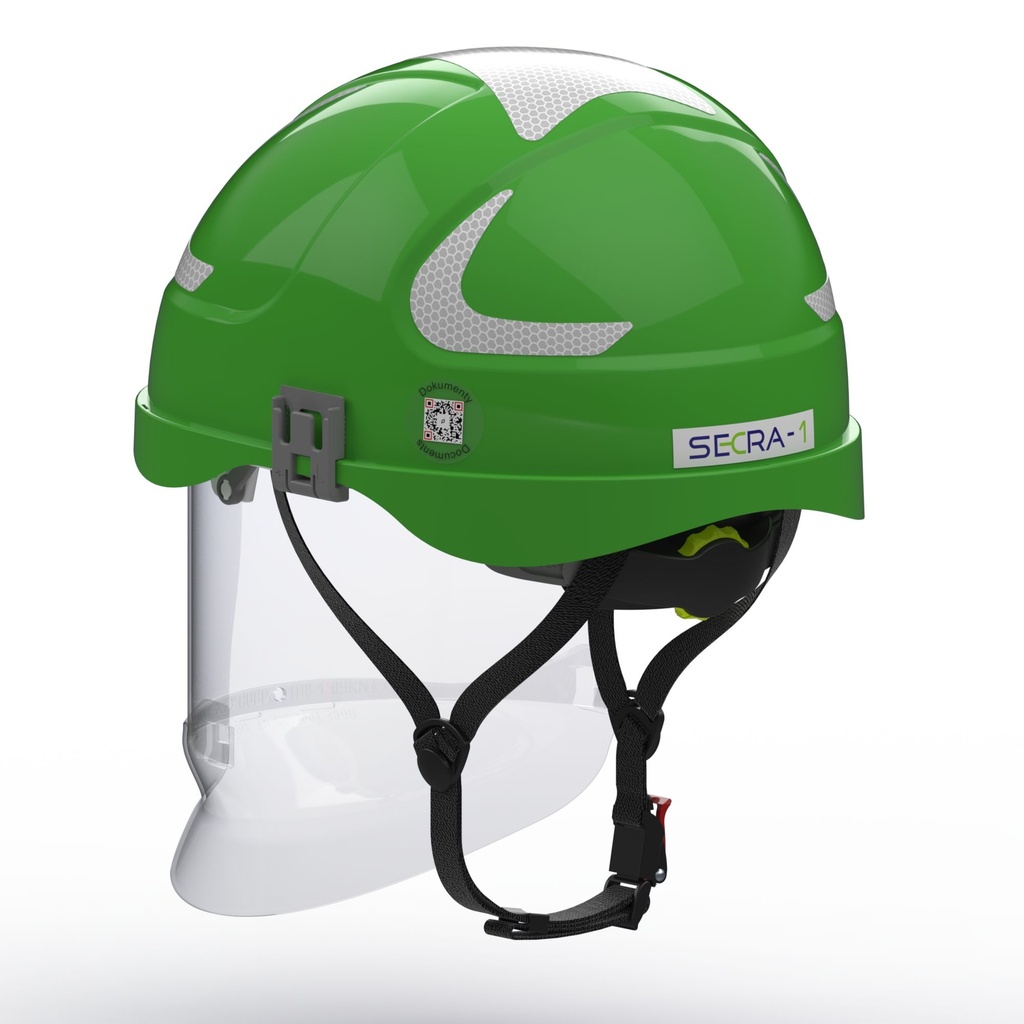

F111 SECRA-1 Helmet integrated face shield APC 1, Class E (20 kV AC), Class 0 (1000V AC/1500V DC)

The helmet is designed to protect the head against mechanical impact and electrical hazards occurring during live work and work at height. The shield provides face protection against threats caused by an electric arc with APC1 parameters according to GS-ET-29, and other threats described in the product technical data sheet.

Electrically insulating helmet with integrated face shield.
Basic protection against electric arc, class 1 acc. BOXTEST, 4 kA/0.5 s. EN166, GS-ET-29

The helmet has:
• Reflective panels improving visibility,
• Permanent marking of the production date,
• Smooth adjustment of head circumference (in the range of 53-63 cm),
• Electrical class E (20 kV AC) according to ANSI Z89.1,
• Electrical class 0 (1000 V AC/1500 V DC) in accordance with EN 50365,
• Compliance with standards: ANSI Z89.1; EN 397; EN 50365

APPLICATION
The helmet is designed to protect the head against mechanical shock and head and eyes against electrical hazards that occur during live working and work at height. The helmet is resistant to lateral deformation and splashes of molten metal. Face shield protects the eyes against the effects of UV radiation (code 2-1,2), liquid splashes and molten metal, hot solids, and electric arc, which may occur during live working and while performing switch over operations. The face shield is also resistant to impact of high velocity and medium energy particles. Face shield has an internal coating for protection against fogging and an outer scratch-resistant and resistance to damage by fine particles. The visor has a light transmission factor of VLT >75%.

STORAGE AND MAINTENANCE
The helmet must be stored and transported in a special transport bag or other protective packaging. During storage or transport, the face shield should be hidden inside the helmet.

Keep the helmet away from any sources of heat. Protect the helmet against mechanical damage, compression, sunlight (UV), humidity, exhaust gases, etc. Do not place the helmet in direct vicinity of windows or car windows. The recommended storage temperature is 20±15 °C.

The hard hat and face shield should be cleaned after each use, which enables precise control and prevents skin irritation of the user. The hard hat should be cleaned only with soap and water. Do not use any solvents, detergents, and abrasives for cleaning. The sweatbands must be regularly replaced.

The face shield should be cleaned only with soap and water. After washing, dry the shield properly. To clean the surface of face shield visor, use a microfiber cloth, attached to each helmet.

Technical data
Weight: 790 g
Size: adjustable within the range 53-63 cm
Resistance to lateral deformation: LD
Resistance to projected droplets of molten metal: MM
Optical class: 1
Resistance to impact of high velocity and medium energy particles: B
Protection against projected liquid: 3
Resistance to fogging: N
Protection level of the UV filter: 2C-1,2
Protection against short circuit electric arc: 8
